Product Details

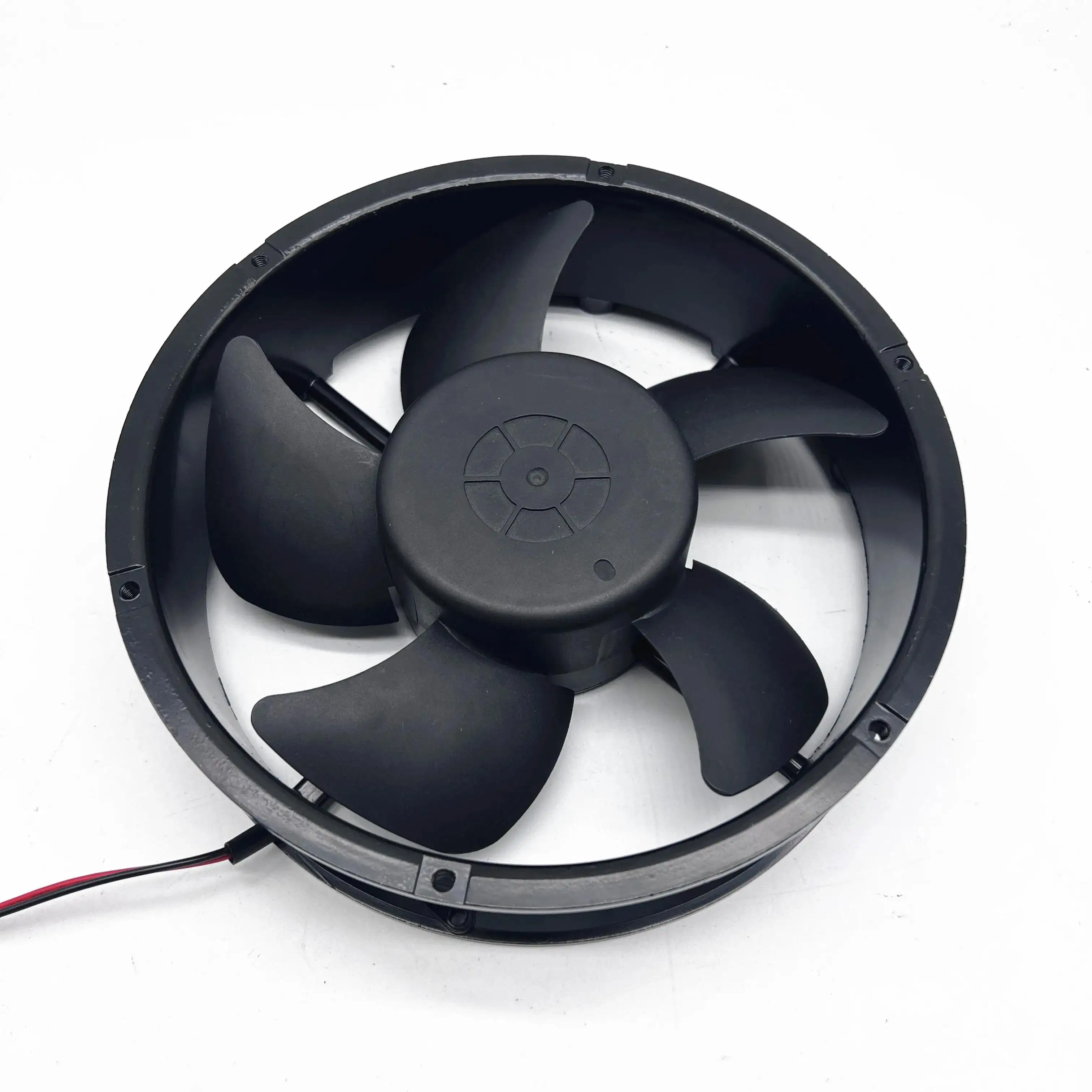

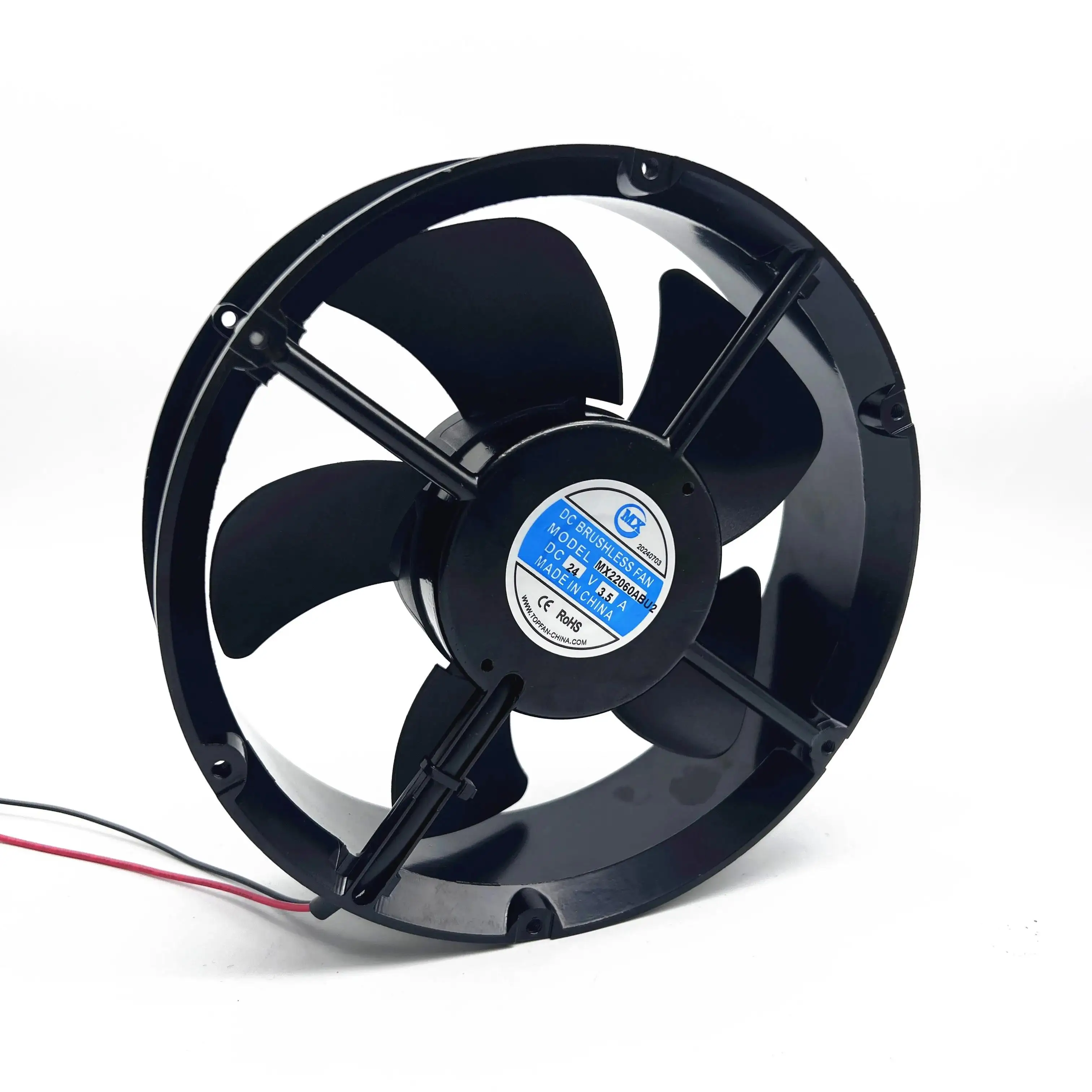

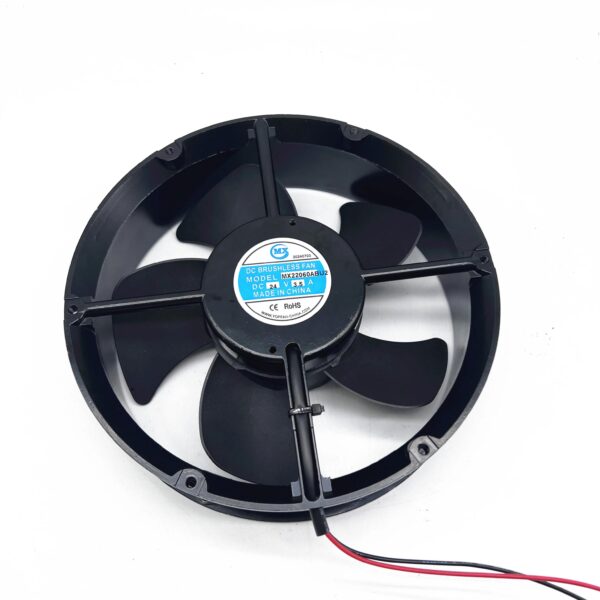

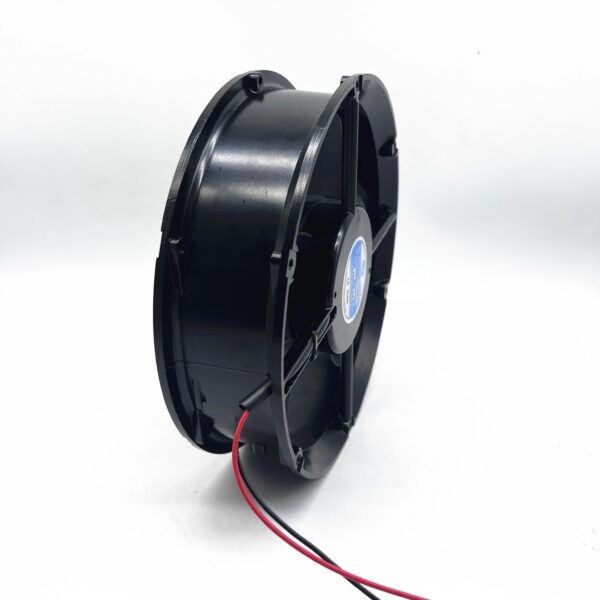

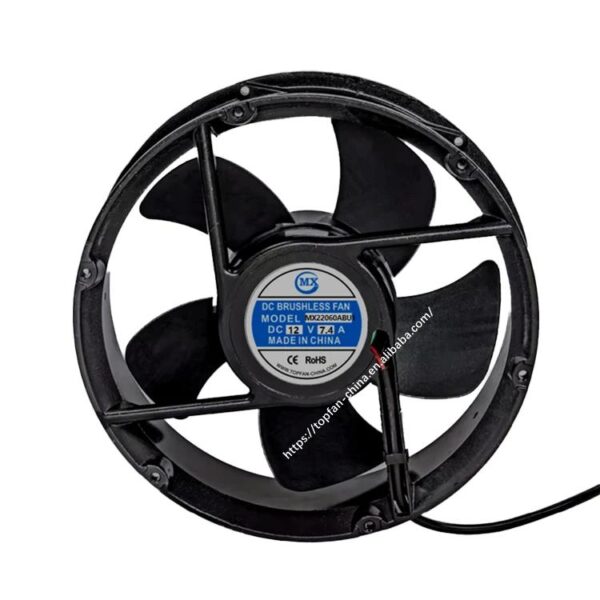

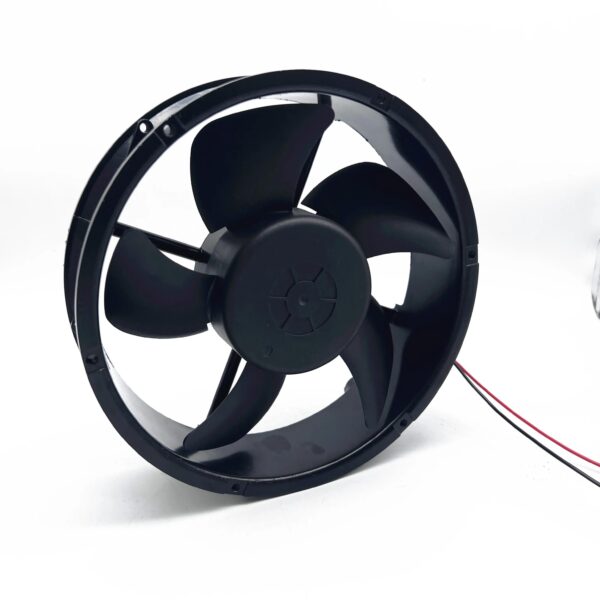

Axial Cooling Fan 220*220*60mm 220mm Exhaust Ventilator Low Noise Blower 24V DC OEM Supported Electric Industri Fan Farms
|
Model
|
Bearing
Type
|
Rated Volt
|
Operating Volt
|
Rated Current
|
Input Power
|
Speed
|
Max. Airflow
|
Max. Static Pressure
|
Noise Level
|
||||||||
|
Part No.
|
S B Y
|
VDC
|
VDC
|
AMP
|
Watt
|
RPM
|
CFM
|
mmH₂O
|
dB-A
|
||||||||
|
MX22060ABU1
|
B
|
12
|
6.0-13.8
|
7.4
|
88.8
|
3500
|
645.61
|
22.02
|
68.5
|
||||||||
|
MX22060ABH1
|
B
|
12
|
6.0-13.8
|
4.73
|
56.76
|
3000
|
586.69
|
17.28
|
63.6
|
||||||||
|
MX22060ABM1
|
B
|
12
|
6.0-13.8
|
2.92
|
35.04
|
2500
|
513.39
|
12.18
|
60.0
|
||||||||
|
MX22060ABL1
|
B
|
12
|
6.0-13.8
|
1.65
|
19.8
|
2000
|
400.58
|
6.65
|
54.6
|
||||||||
|
More Models
|
Other RPM/CFM/Voltage/Current…please contact us see the specification for more details.
|
||||||||||||||||

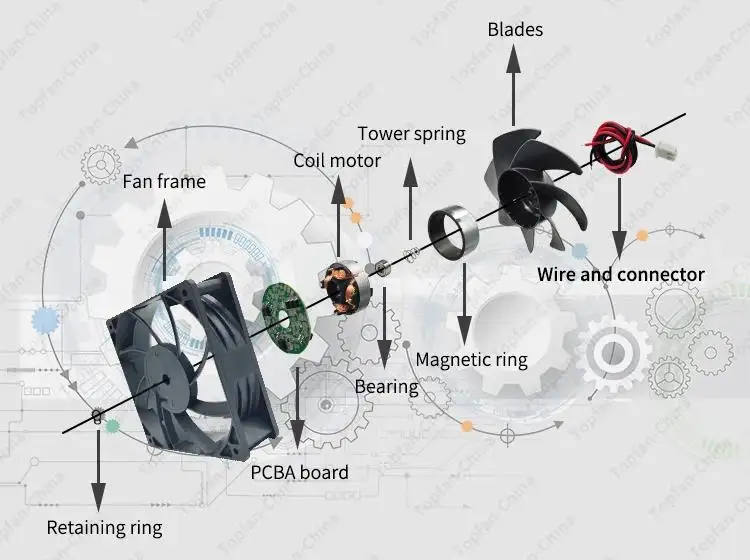

Product Breakdown
|
Product Name
|
DC Axial Fan
|
|
Brand
|
MX topfan/OEM/ODM
|
|
Frame and Impeller
|
Plastic(94V-0)，PBT
|
|
Bearing Type
|
Sleeve bearing&Ball Bearing
|
|
Function Range
|
PWM FG RD IP58 IP68
|
|
Leadwire
|
Red Wire Positive(+)，Black Wire Negative(-)
|
|
Rated Voltage
|
5V 12V 24V 48V …
|
|
Operating Tempetature
|
-30℃ to +80℃
|
|
Product Applications
|
Household Appliances/Machine/Aeronautical/Power equipment, etc
|
Best Selling

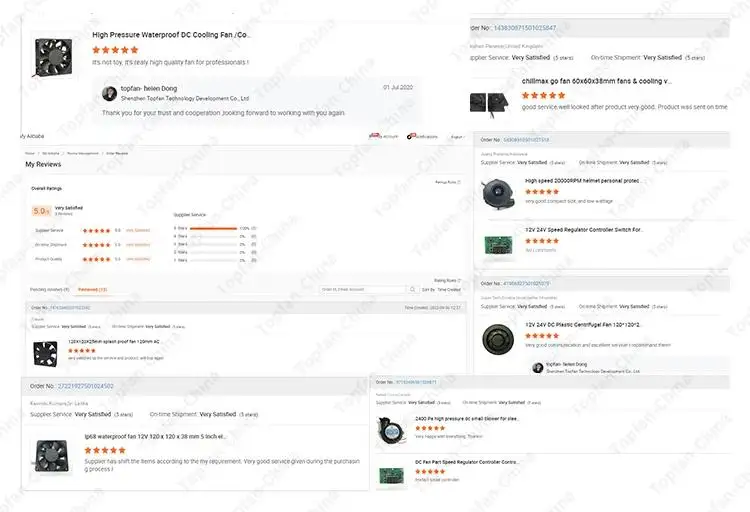

Customer Praise
