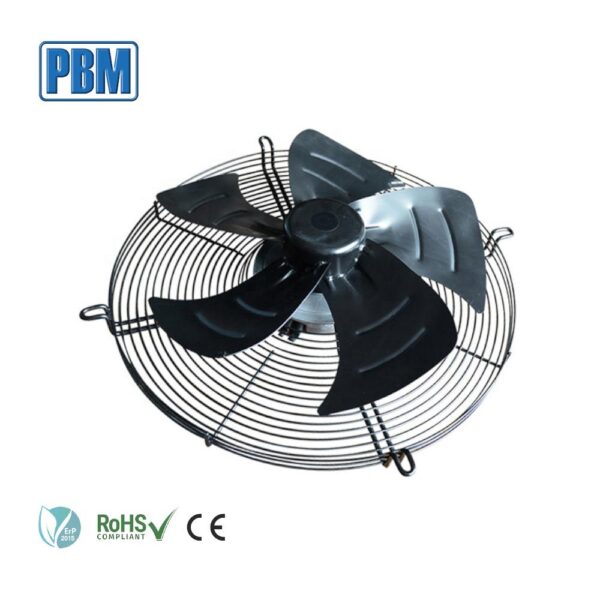

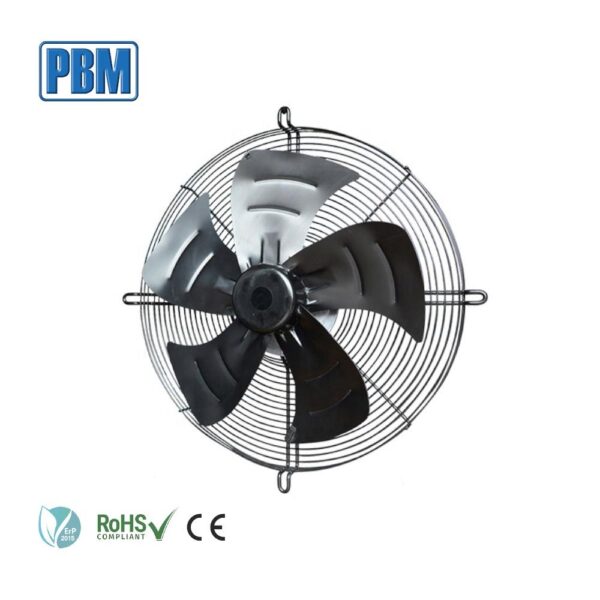

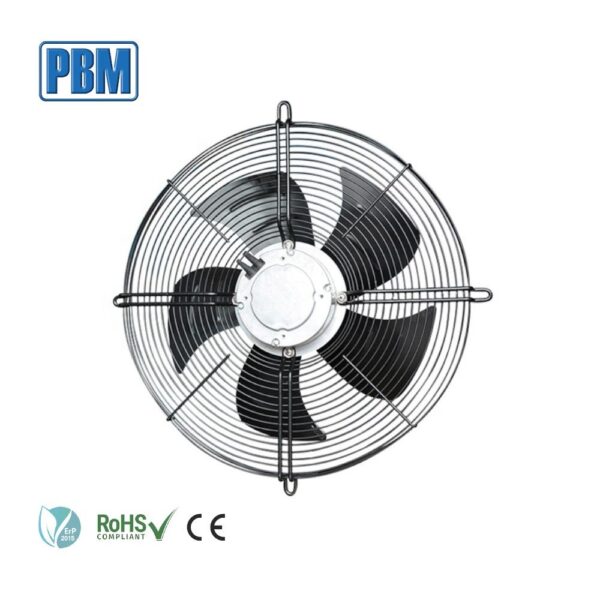

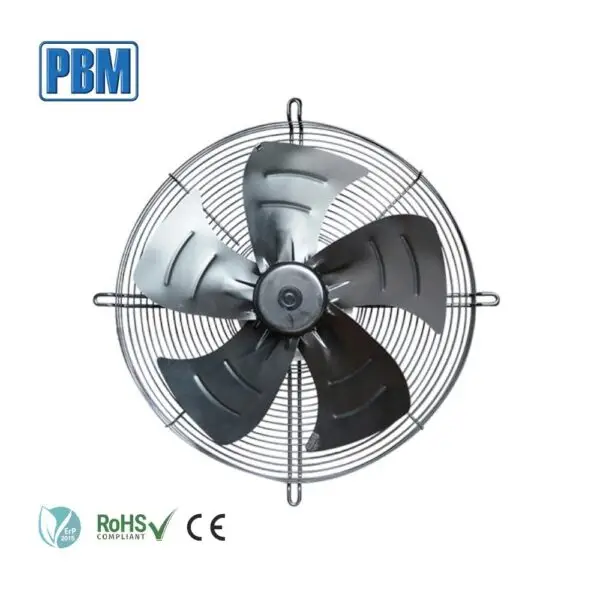

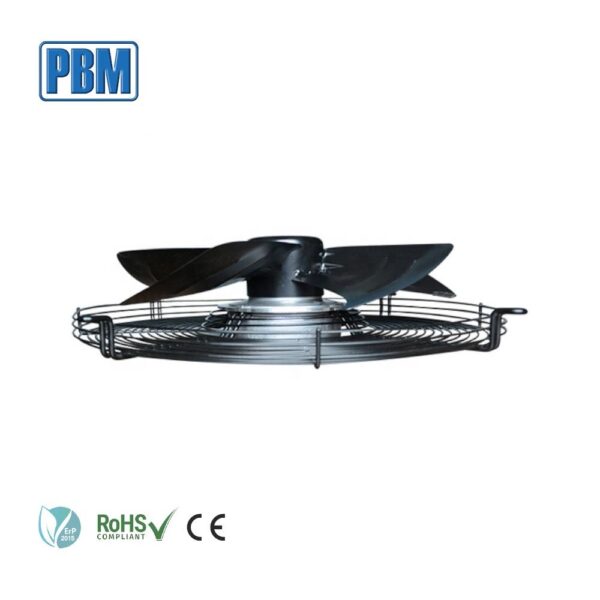

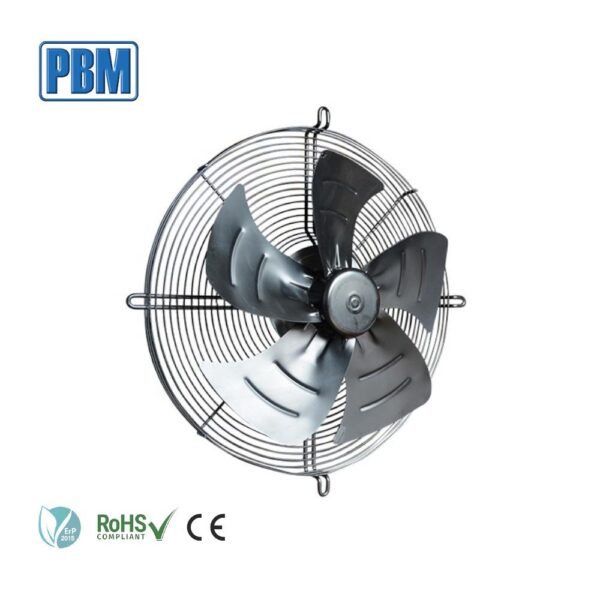

450×140 mm 230V EC Axial Ventilation Exhaust Fan with Guard Grille

$96.00

+ Free Shipping

Category: Axial Flow fan Brand: Pbm Motor And Fan (suzhou) Co., Ltd.

Description
Reviews (0)

Product descriptions from the supplier

1.General Characters

1-1	Rated Voltage	230 VAC
1-2	Frequency	50/60 Hz
1-3	Operating Voltage	184~276 VAC
1-4	Rated Speed	1750 RPM
1-5	Input Current	2.7 A
1-6	Input Power	400 W
1-7	Air Flow	3531.59 CFM / 6001 m³/H
1-8	Static Pressure	1.26 inH2O / 316 Pa
1-9	Acoustical Noise	76 dB(A)
1-10	Life Expectance	50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH.
1-11	Insulation Class	Class B
1-13	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-14	Speed Control	Control input 0~10VDC / PWM
1-15	Protection Type	IP44
1-17	Signal Output	FG (Frequency Generator)

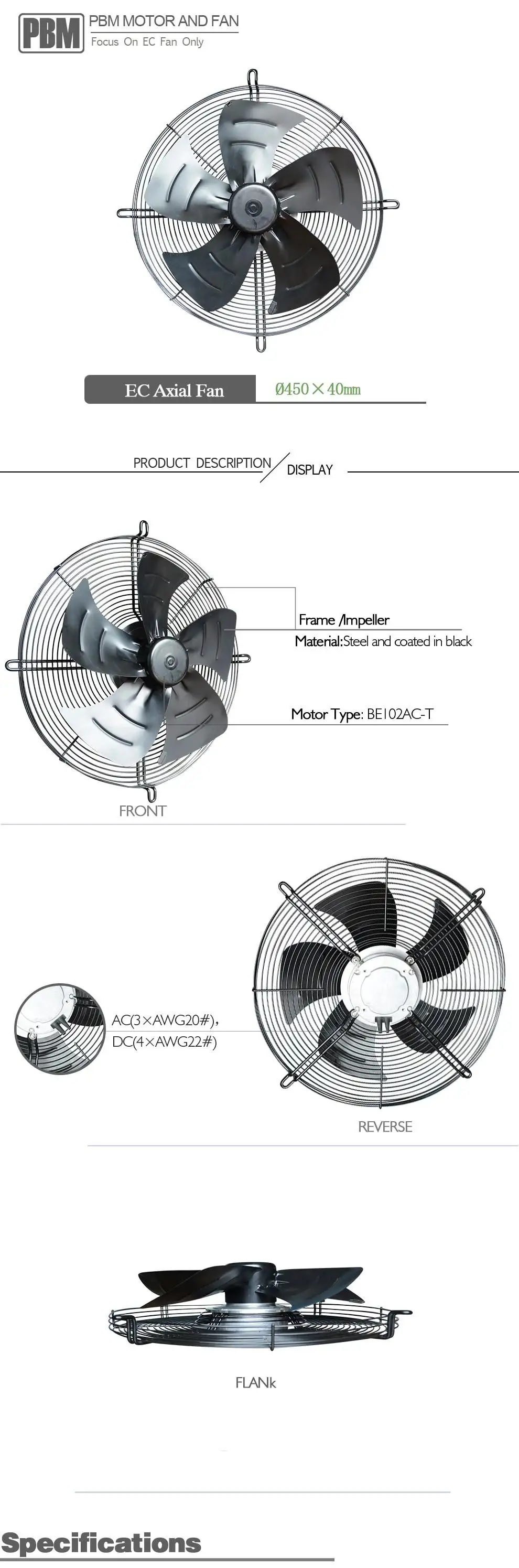

2. Mechanical Characters

2-1	Dimension	Ø450mm X 140mm (see dimension drawing)
2-2	Material of Impeller	Cold rolled steel sheet
2-3	Number of Blades	5
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	AC(AWG20#),DC(AWG22 #)

3. Environmental Characters

3-1	Operating Temperature	-25℃ to 60℃
3-2	Storage Temperature	-40℃ to 75℃
3-3	Operating Humidity	5% to 90% RH
3-4	Storage Humidity	5% to 95% RH

Model	Motor Type	Bearing System	Rated Voltage	Frequency	Rated Current	Rated Power	Rated Speed	Air Flow	Air pressure	Noise Level
Part NO.	Type	B / S	VAC	Hz	A	W	RPM	M³/H	Pa	dBA
PG3N450B2EM	BE102AC-T	BALL	230	50/60	3.2	480	1950	6001.8	316	76

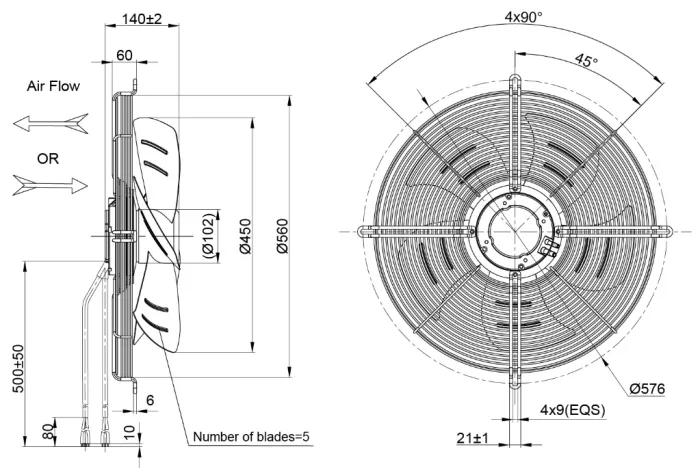

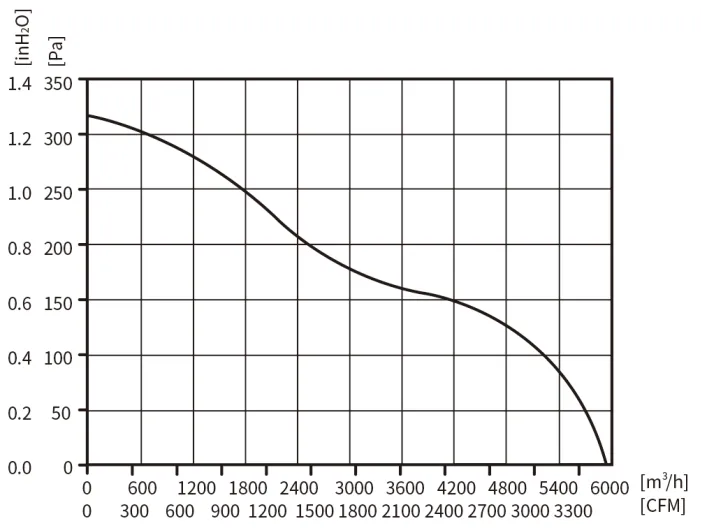

4.Outline Drawing and Performance Curve

.png

.png

.png

FAQ

Q1. How about the delivery time ?

A1: Within 25 days after we receive the order.

Q2. What kind of payments do you support?

A2: T/T & L/C, other types please contact us.

Q3. What’s the MOQ?

A3: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q4. Transportation

A4: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.

Q5. Global Market

A5: Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best EC Centrifugal Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.
