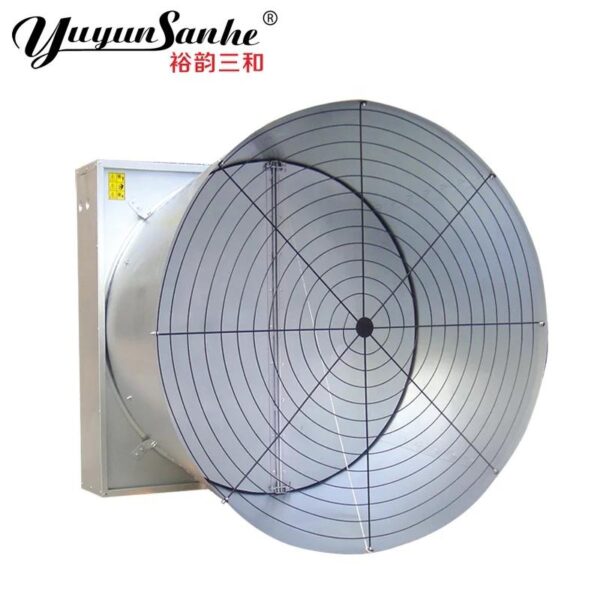

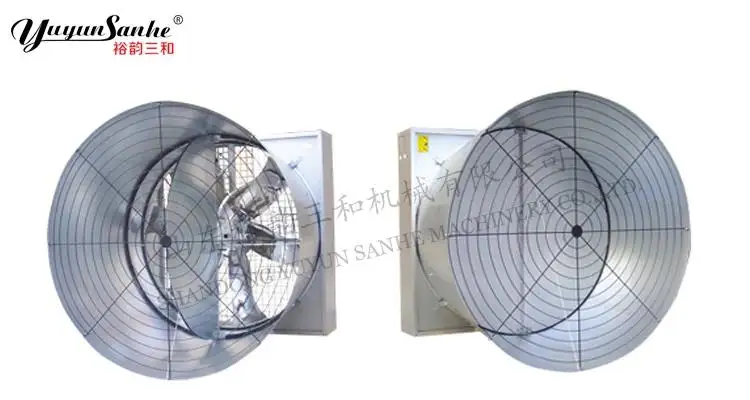

Product Application

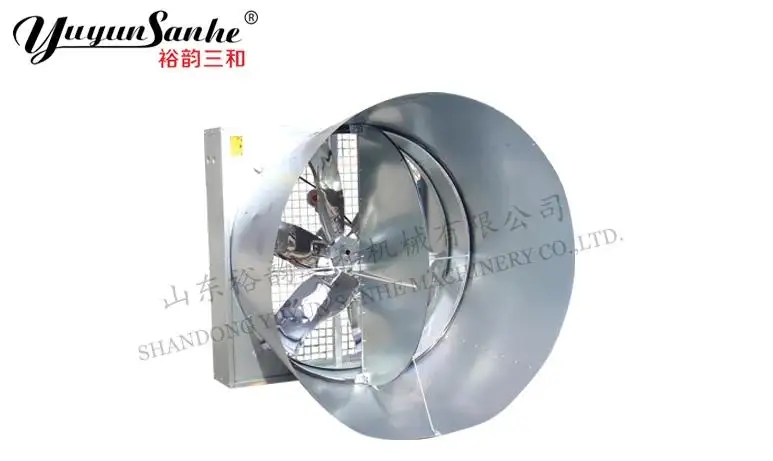

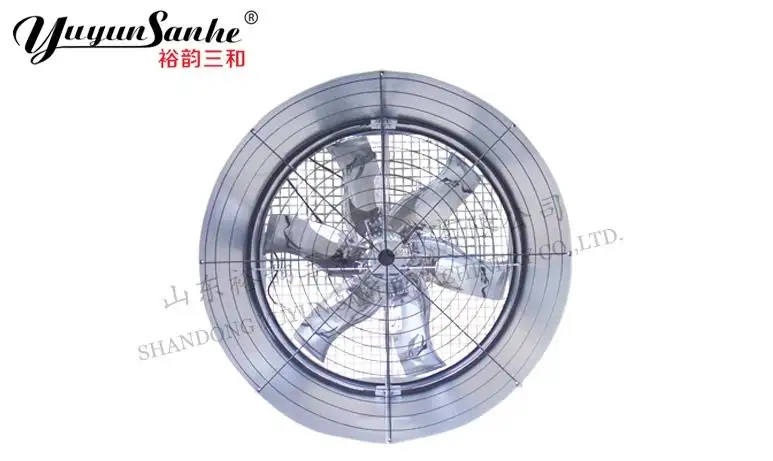

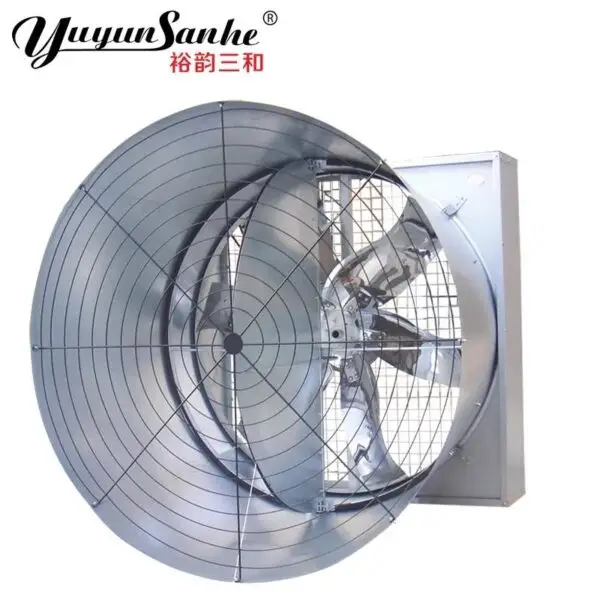

DJF(e) Series Butterfly Cone Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
|

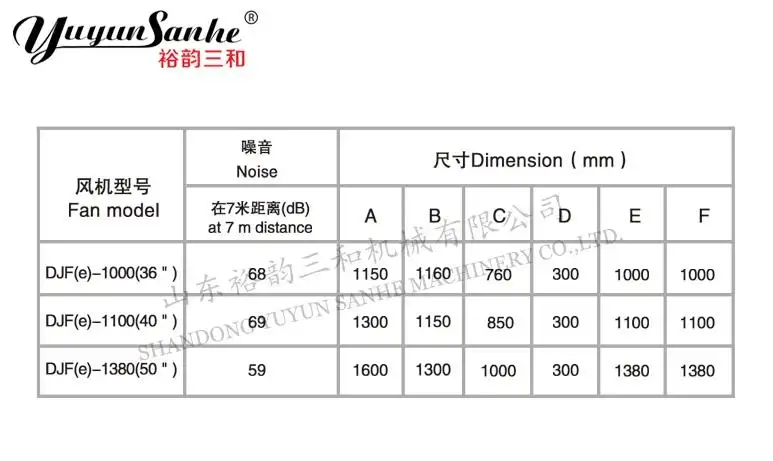

Technical Data:
|
||||||||||||||
|
Model
|
Drive
|
Blades Diameter(mm)
|
Blades Rotational Speed(rpm)
|
Motor Rotational Speed(rpm)
|

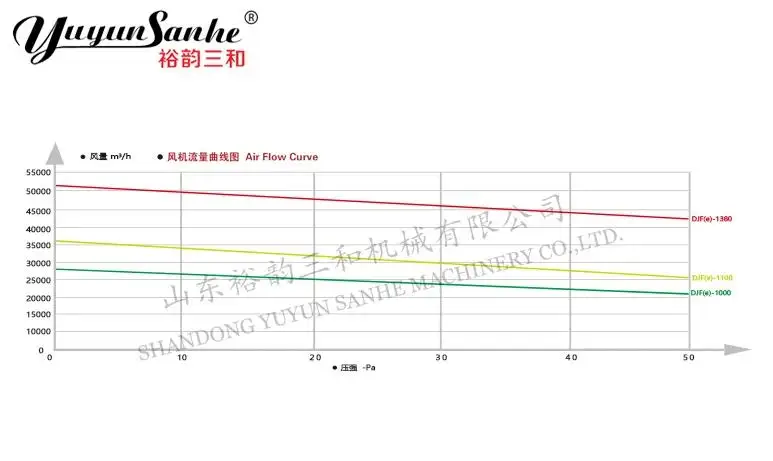

Air Flow (m³/h)
|
Input Power (W)
|
Noise (db)
|
|||||||
|
DJF(e)-1000
|
Belt
|
910(36in)
|
500
|
1400
|
28000
|
550
|
<64
|
|||||||
|
DJF(e)-1100
|
Belt
|
1000(40in)
|
470
|
1400
|
36000
|
750
|
<64
|
|||||||
|
DJF(e)-1380
|
Belt
|
1270(50in)
|
458
|
1400
|
51020
|
1100
|
<64
|
|||||||
Main Features
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.

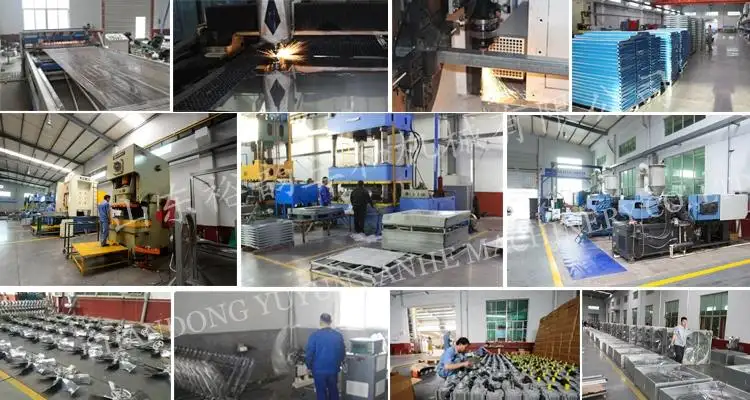

2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally

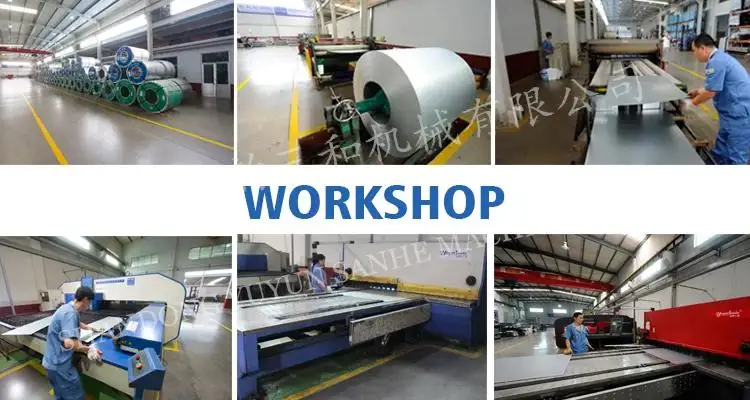

3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
1.Using advanced front double door opening device,small wind resistance, good sealing, high efficiency
2.Lengthened cone design improves exhaust power.
Frame
Hot Galvanized sheet with zinc thickness of 275g/㎡, avoiding rust effectively.

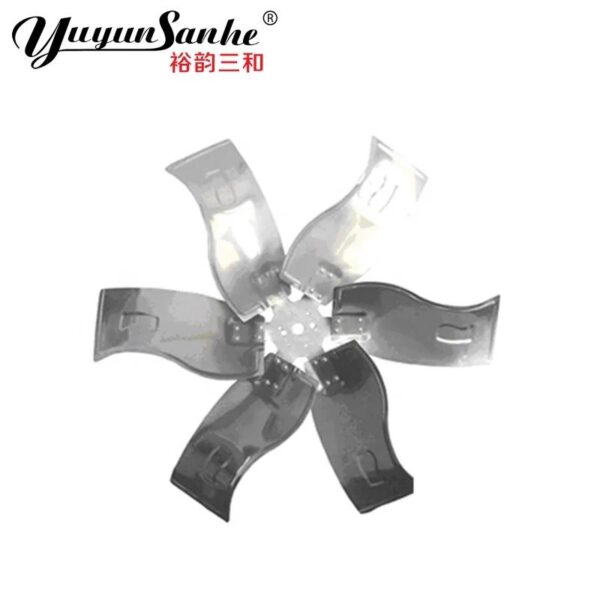

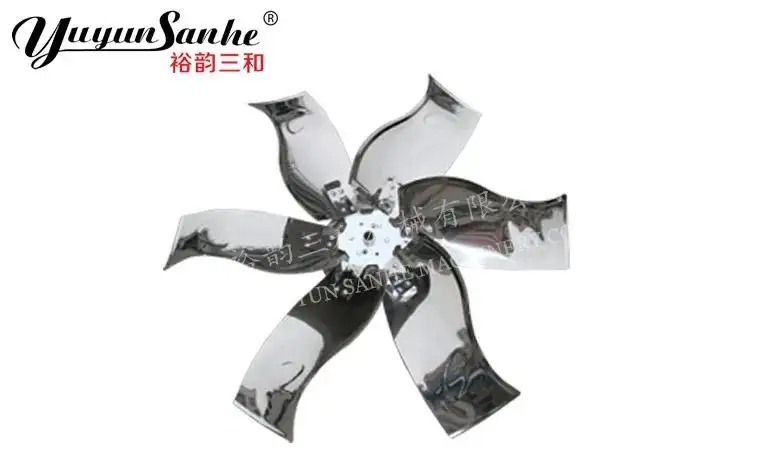

Fan Blades
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm, Large air flow, no deformation, no fracture, no dust, attractive and durable.

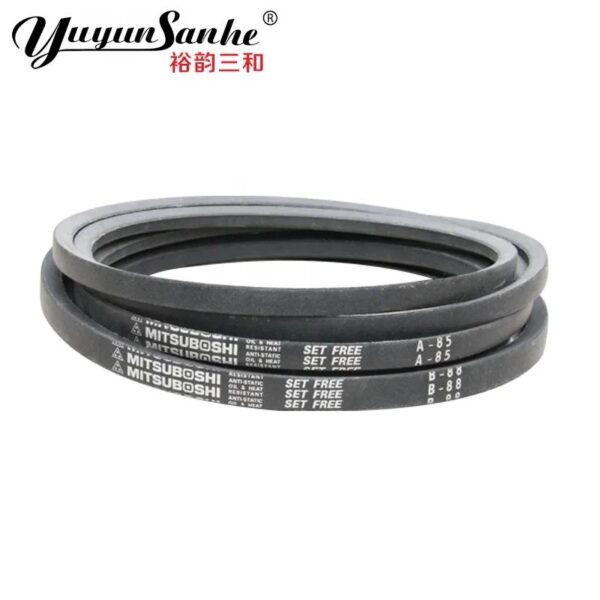

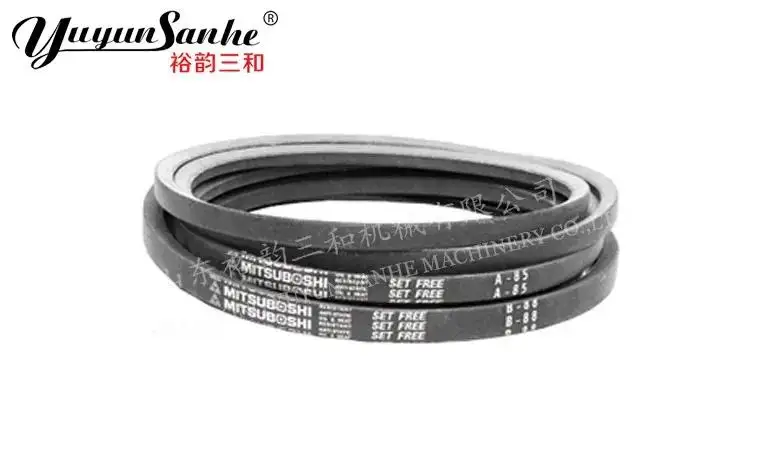

Belt
Japanese Mitsuboshi belt for long service life and free maintenance.

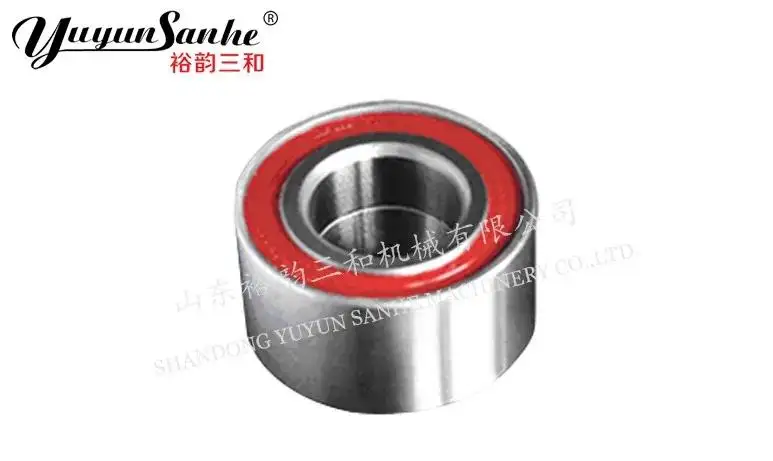

Bearing
Imported double-row bearing with special waterproof design.
High strength, low noise, free maintenance and long service life.

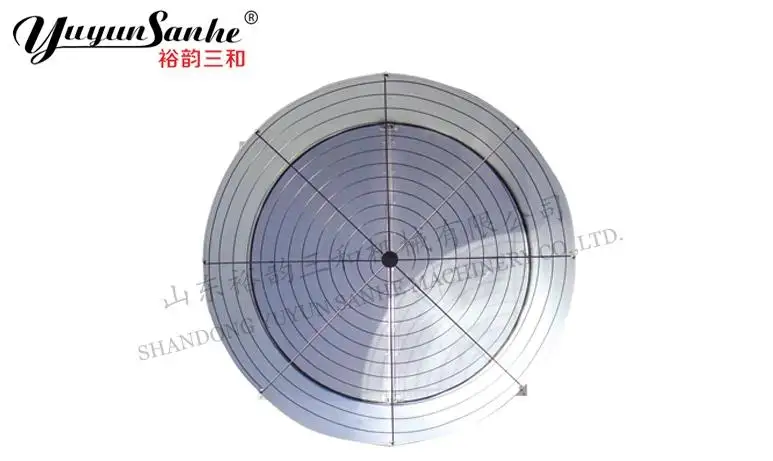

Safe Net
1.Material: Hot-dip galvanized wire is coated with Plastic
2.Double Protection to ensure never rust.

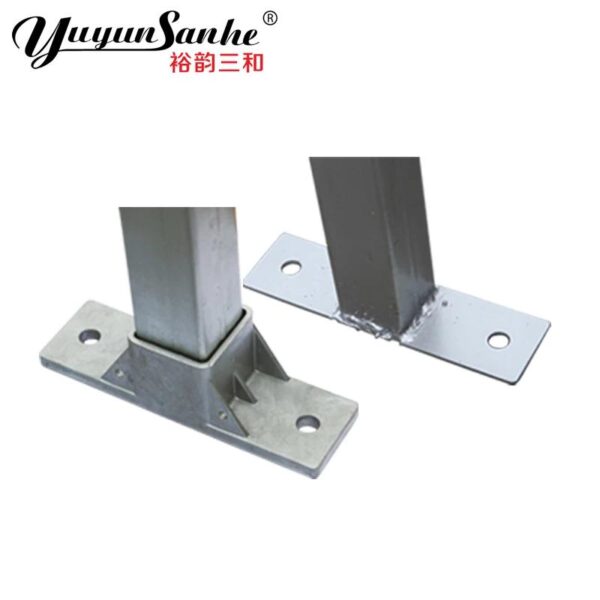

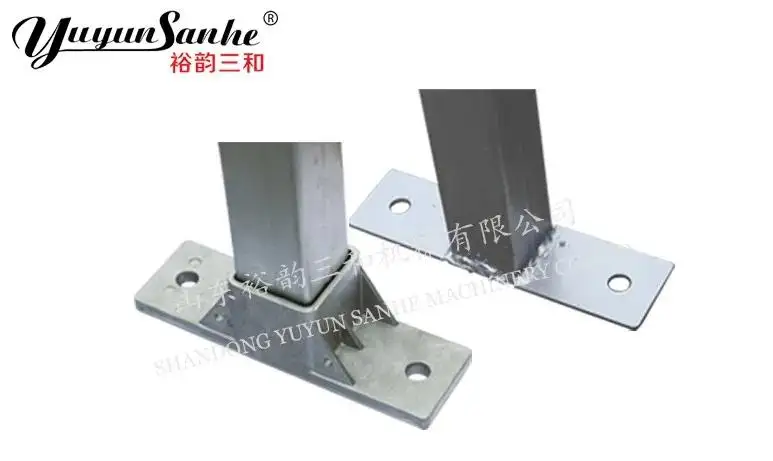

Blade Support Base
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-in connection
Advantage:
Compare with the traditional welding connection , Our new type Aluminum magnesium alloy base has greatly reduced the friction coefficient, fixed more firmly, avoided

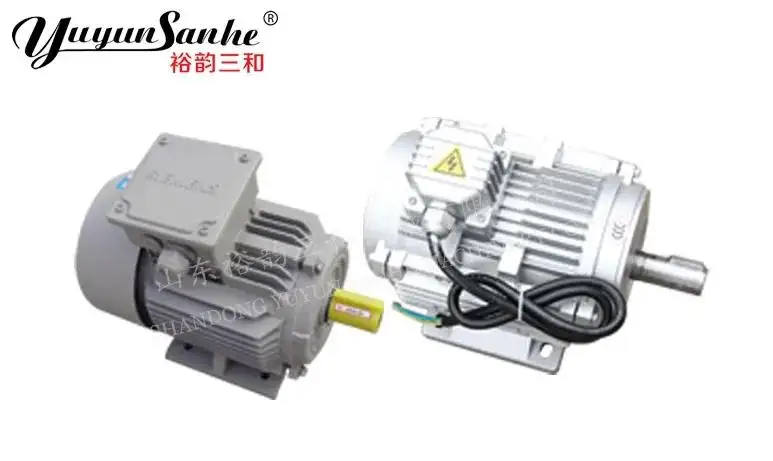

Motor
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

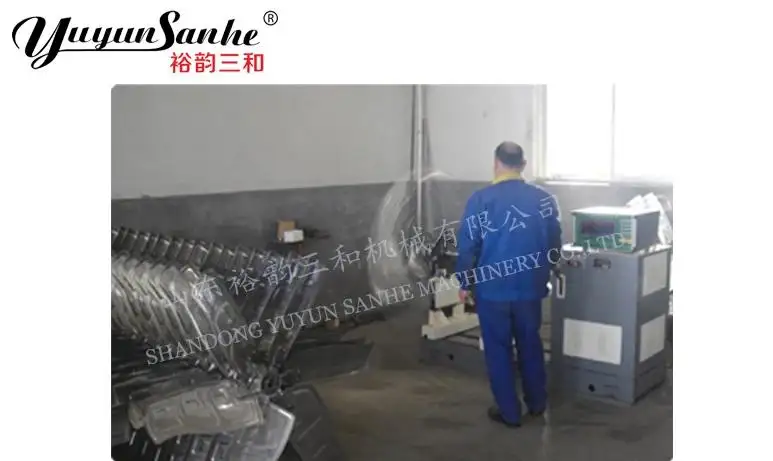

Italligent Dynamic-balance Tester
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Yuyun Sanhe Products have passed “CE Certificate “, “CCC Certificate” and “Quality Management System Certificate”
Yuyun Sanhe Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.
Global service, Annual sales over $ 30 million
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
