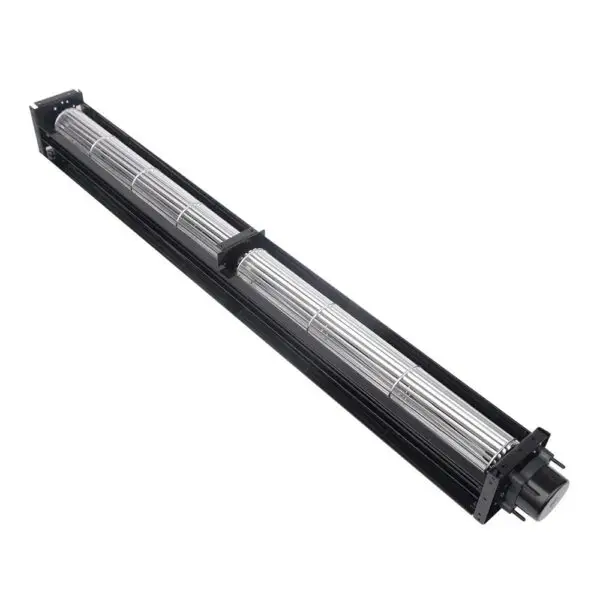

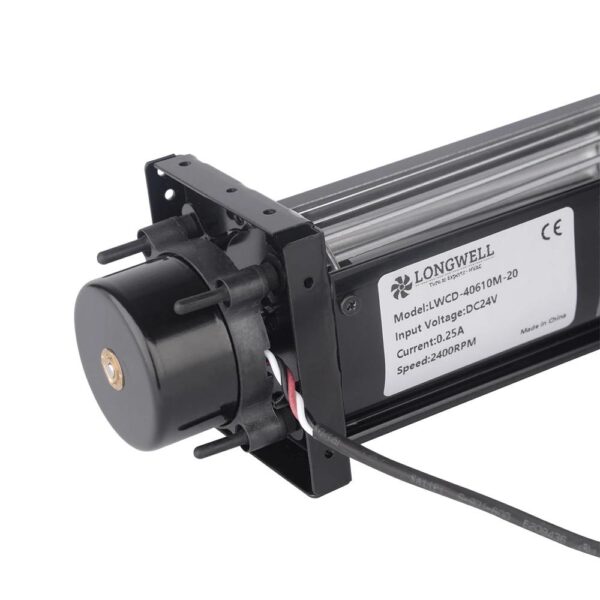

Products Description
|

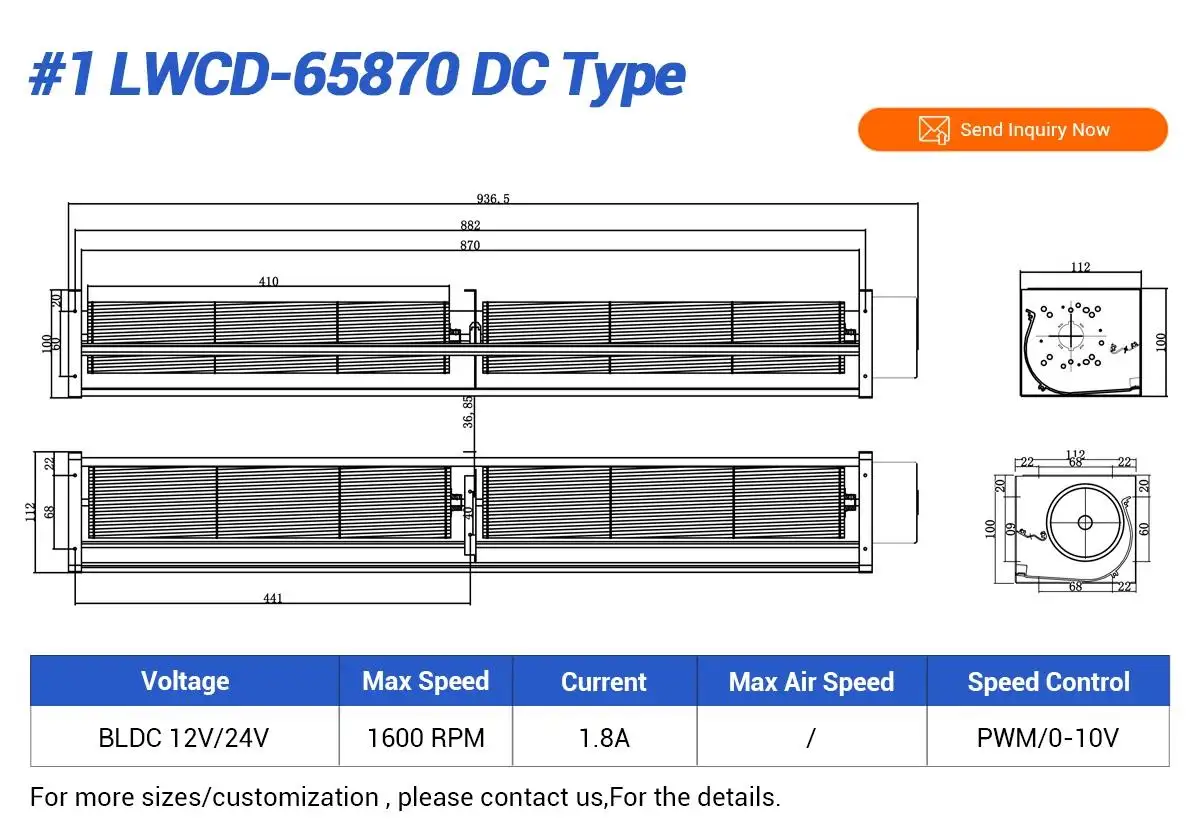

Nominal Impeller Diameter:
|
from 30mm to 200mm ( impeller diameters )
|
||||||
|
Nominal Impeller Length:
|
150mm – 1450mm
|
||||||
|
Max Length of the blower :
|
Up to 1450mm
|
||||||
|
Fan Speeds :
|
0-3600 rpm
|
||||||
|

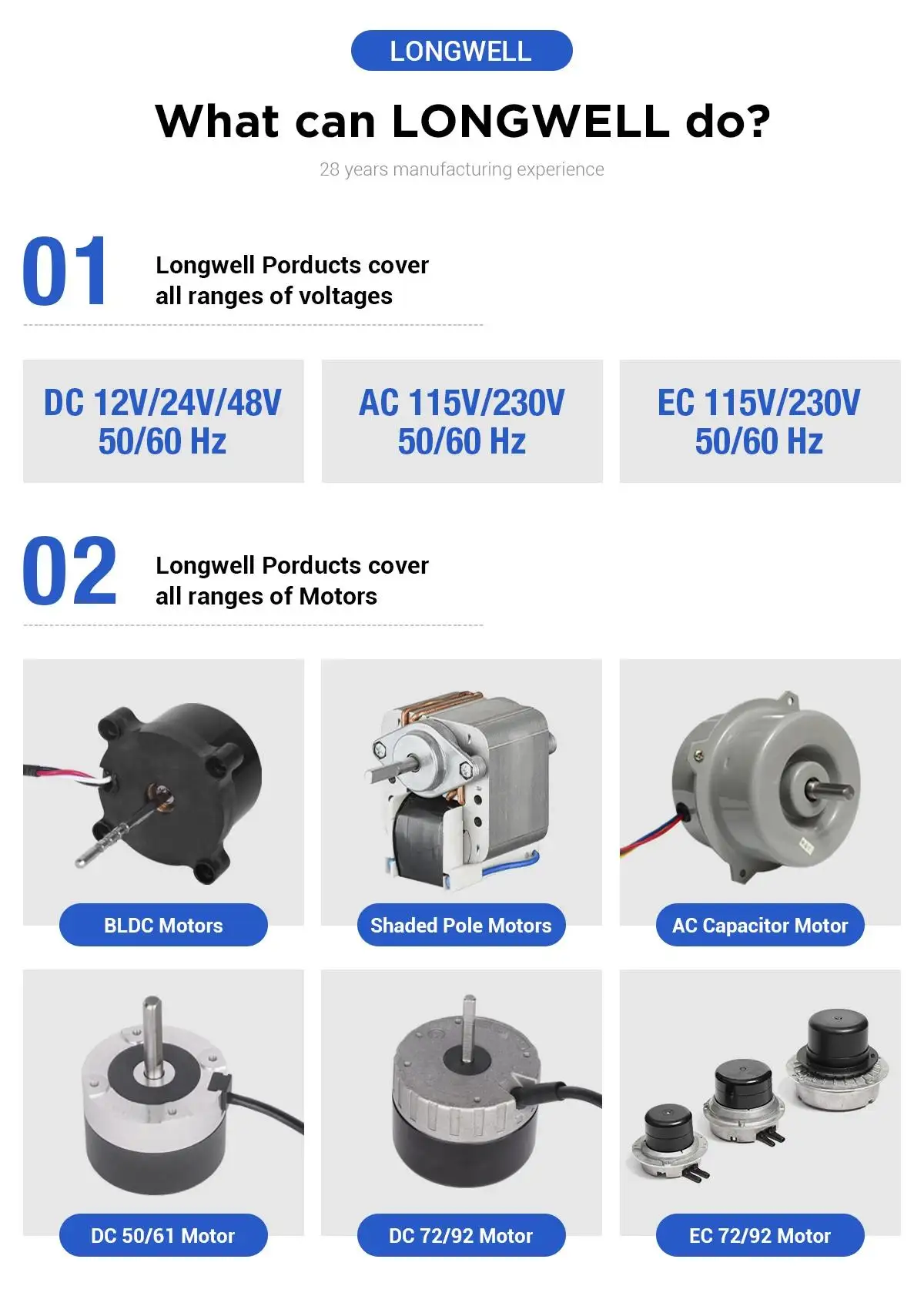

Drive Motor Types :
|
Shaded Pole Motor ( AC ) ; Brushless DC ( BLDC/EC)
|
||||||
|
Standard supply voltages:
|
DC 12V / 24V / 48V~50/60 Hz ;
AC 115V / 230V~50/60 Hz ;
EC 115V / 230V~50/60 Hz. |
||||||
|
Motor and Impeller Bearing Type:
|
Ball Bearings
|
||||||
|
Optional heater elemtns :
|
PTC Heater or Aluminum Fan heaters
|
||||||
|
Typical Applications :
|

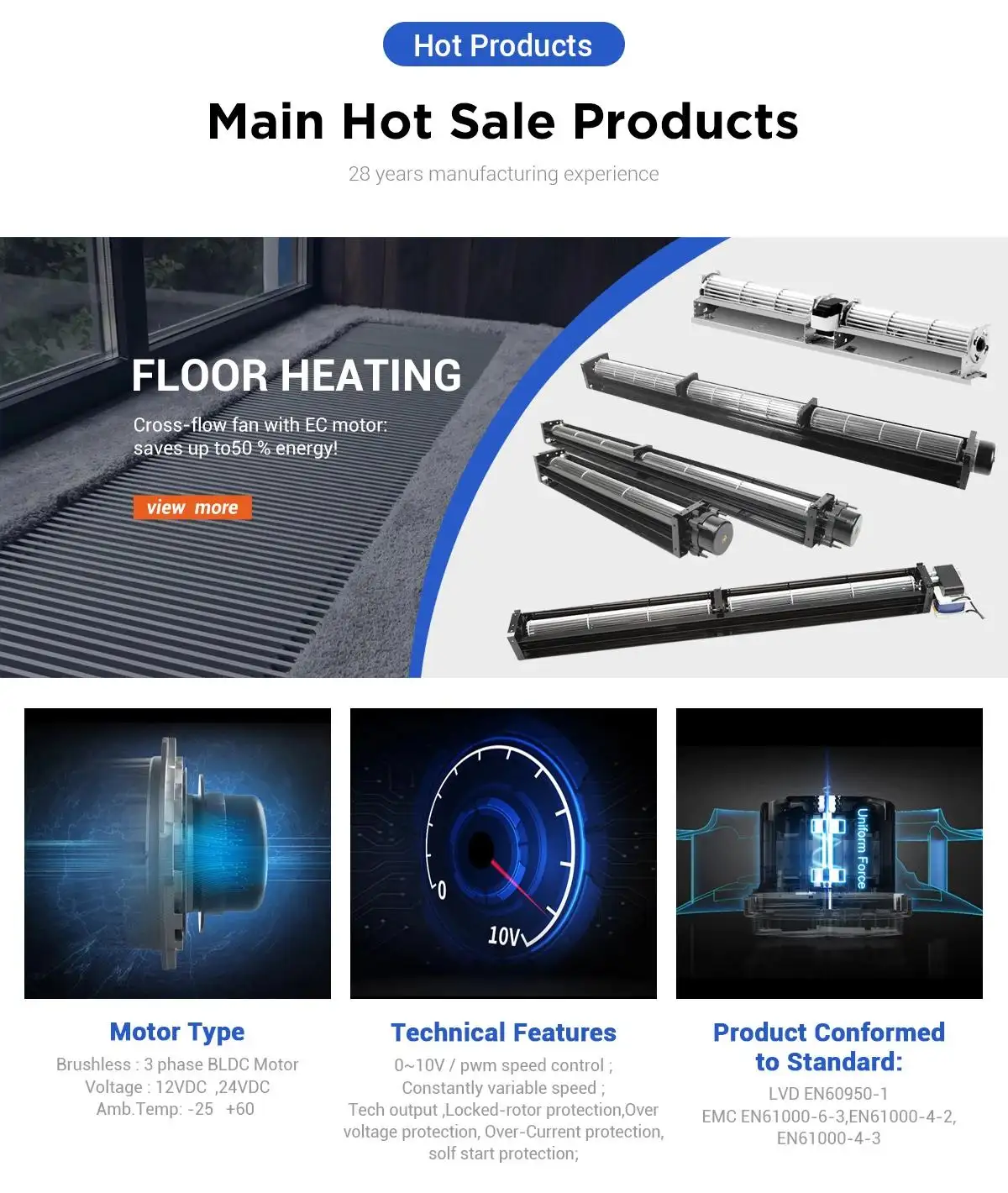

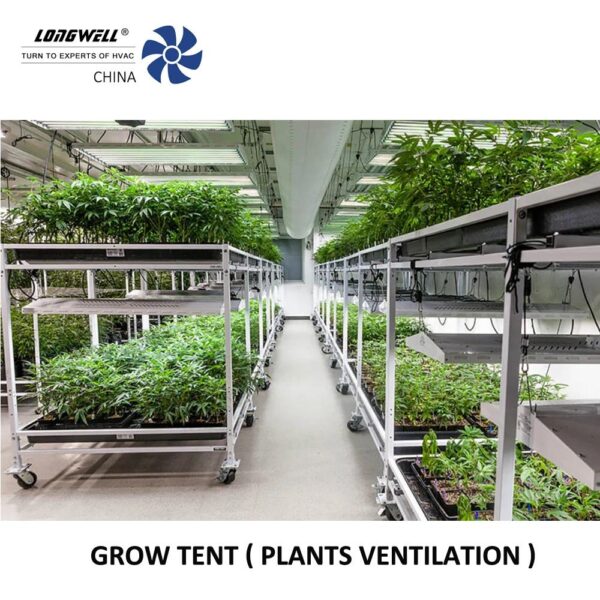

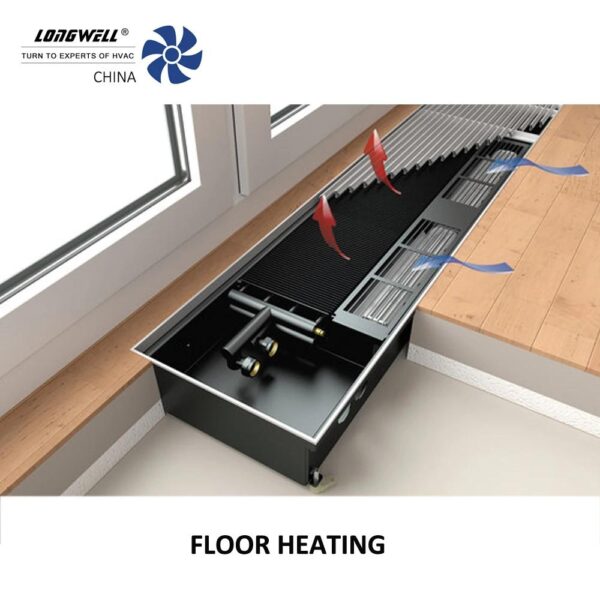

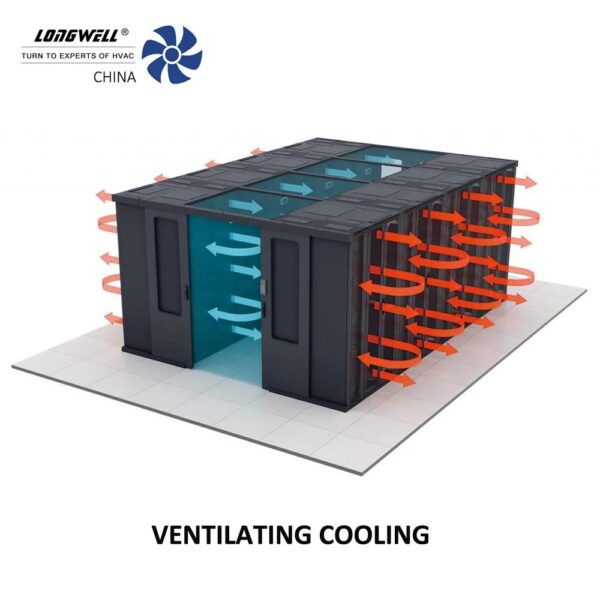

Trench Heaters / Floor Convectors / Wall Convector /Domestic ventilation / Catering equipment / Electronic cooling / Heat recovery ,etc
|
||||||
|
Special Features :
|
Compact Desin with low noise ( down to 20 dBA ) .
Coupled fans for extended length applications ;
0-10v / pwm speed control system
|
||||||
|

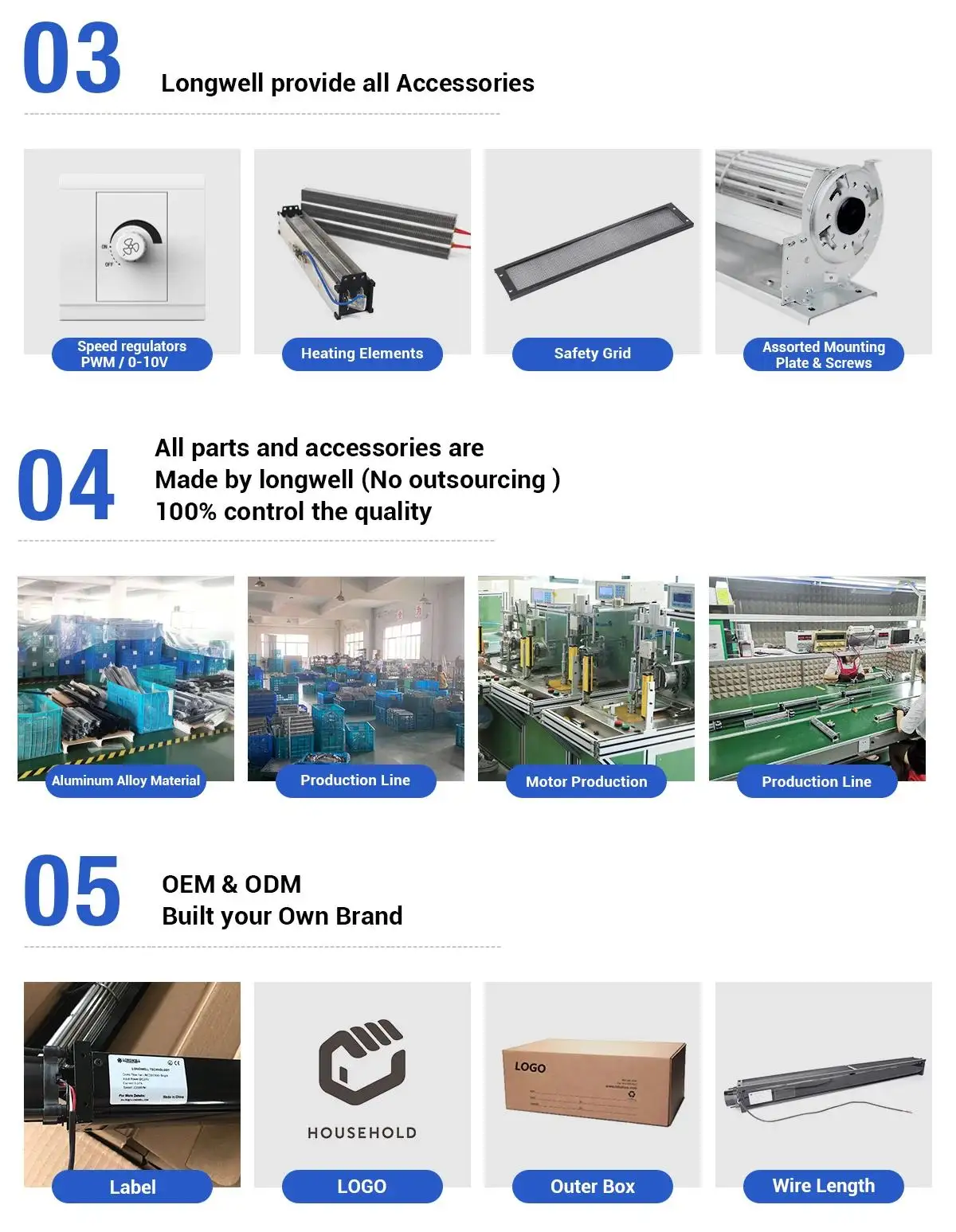

Other Options Include ；
|

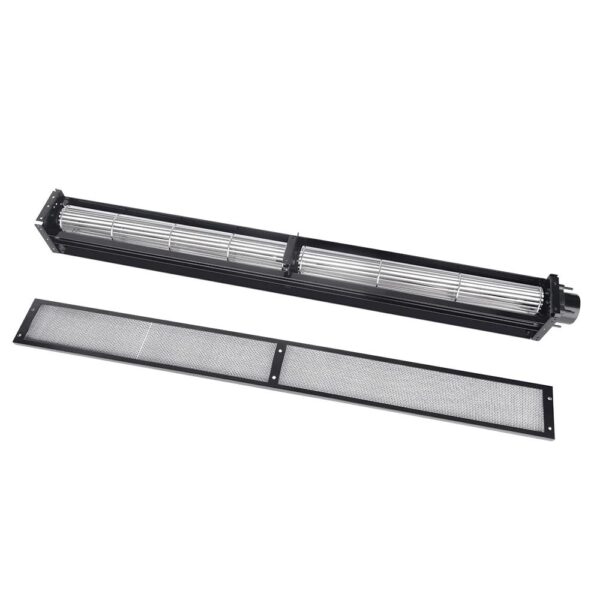

Finger guard , mounting brackets , special electrical connector .
|
||||||

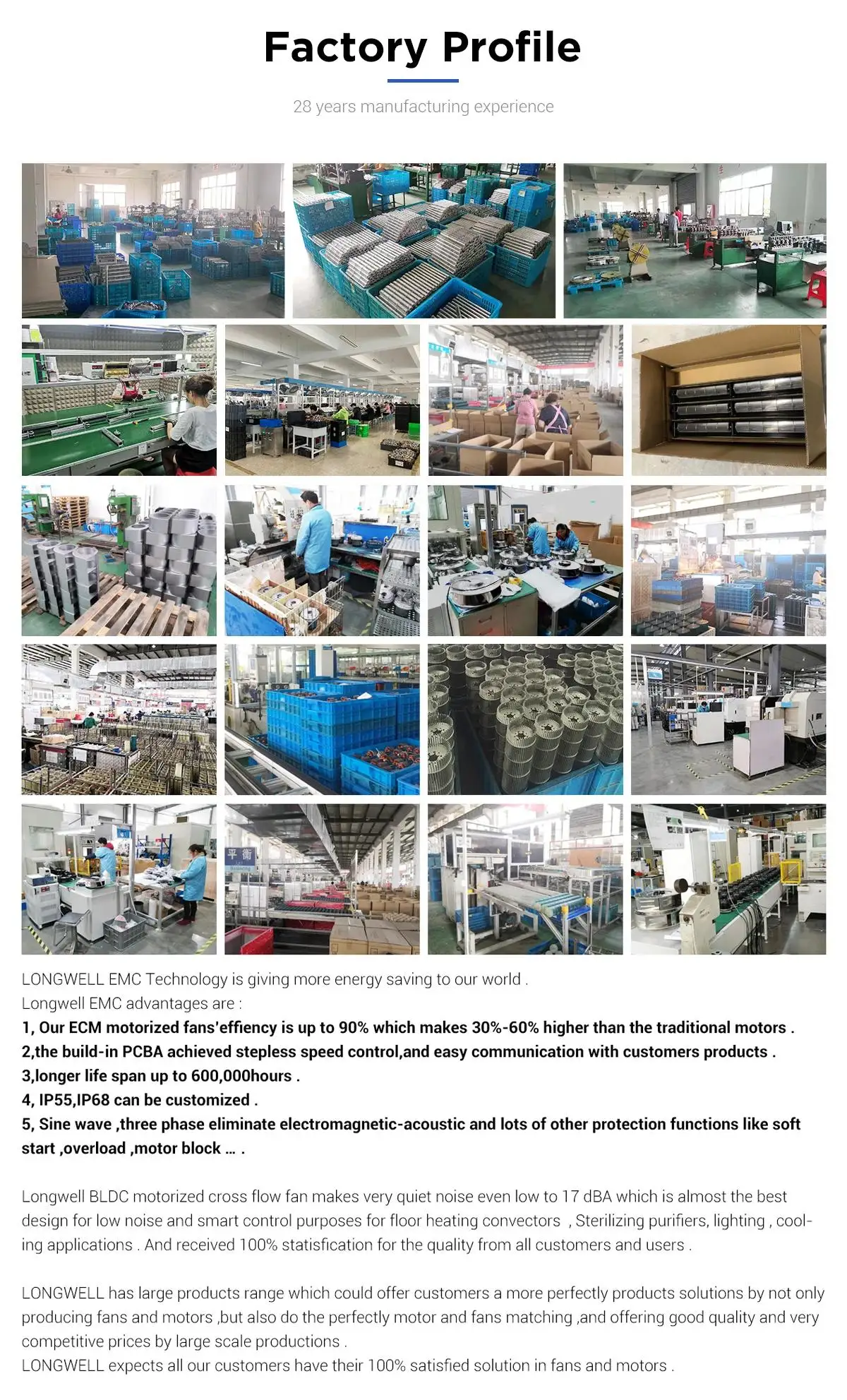

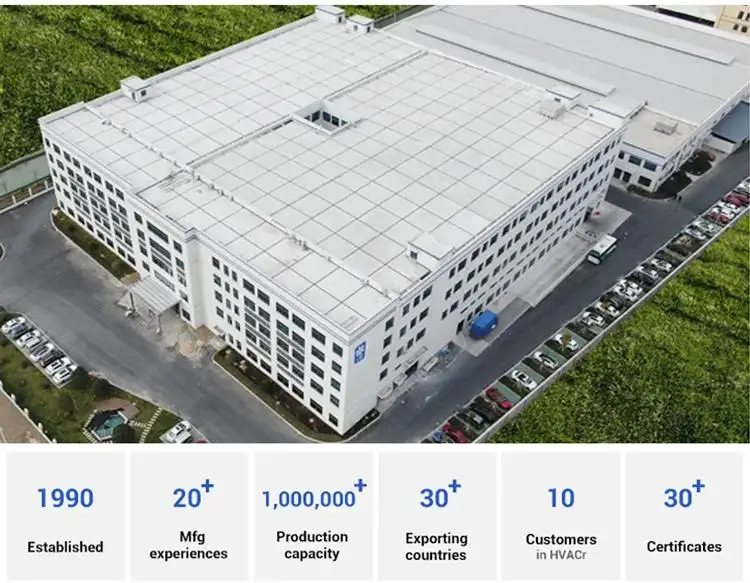

Company Profile

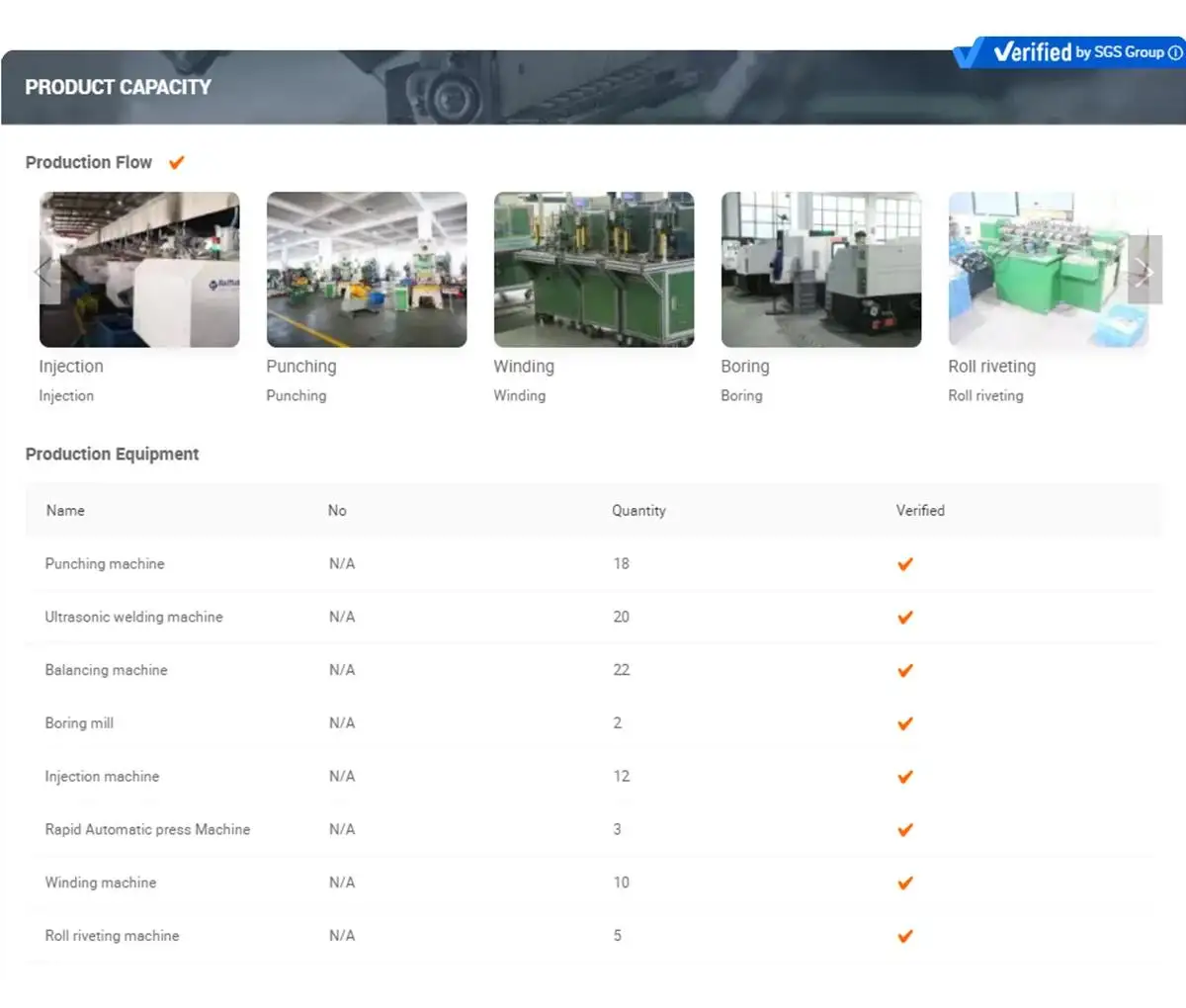

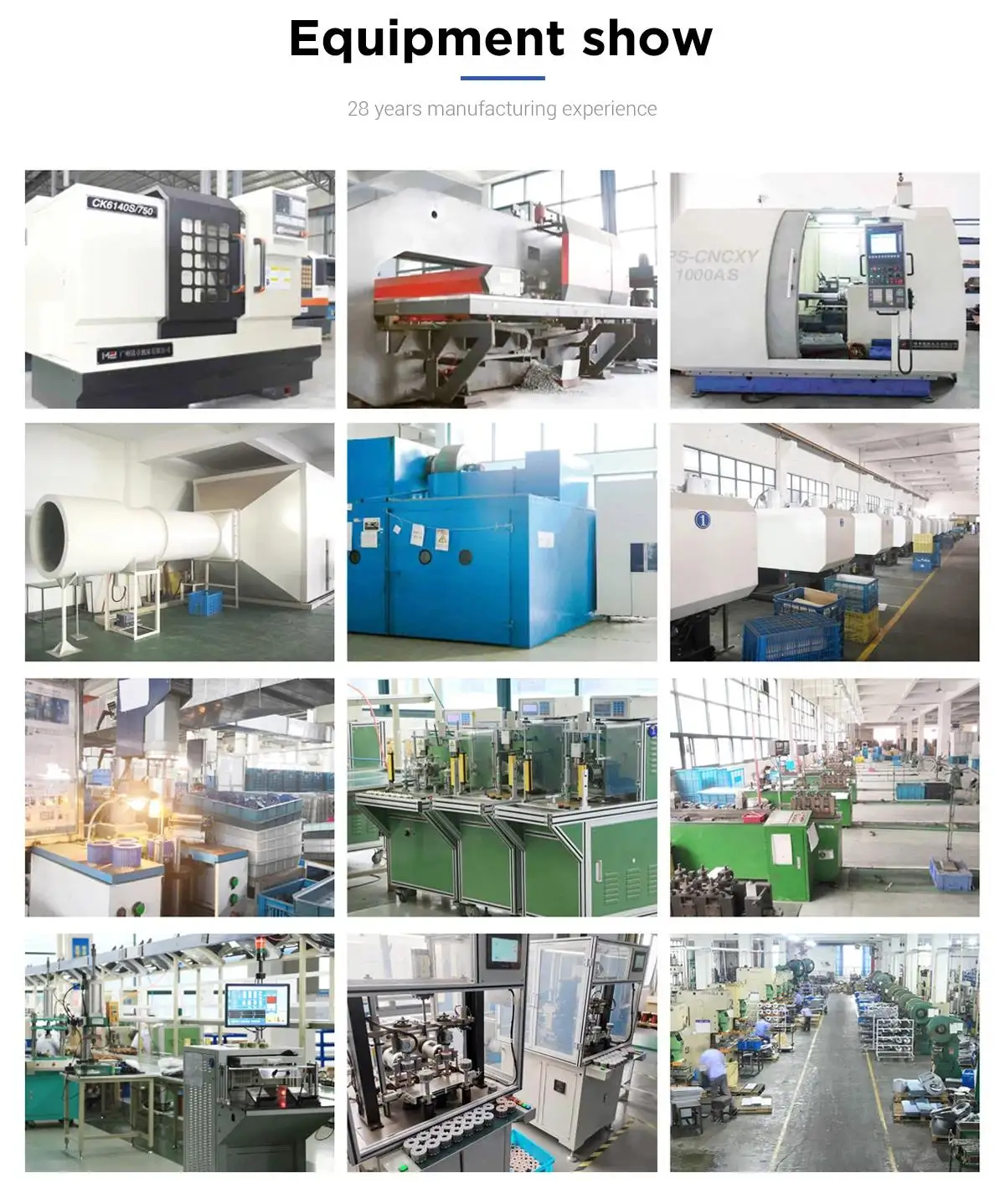

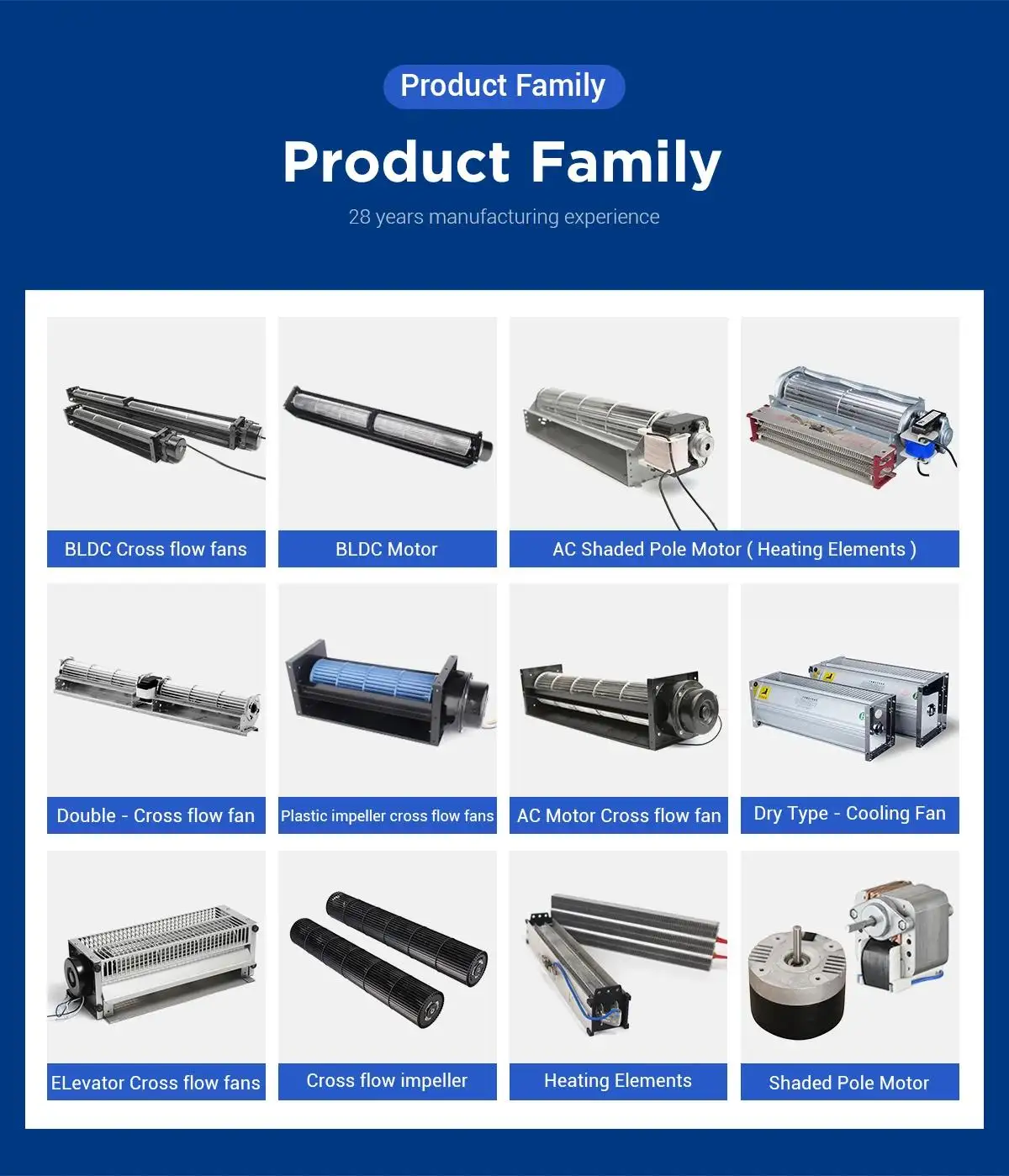

LONGWELL is a manufacturer of HVAC fans, blowers , motors and components ,such as centrifugal fans, axial fans, cross flow fans, single/double forward curved fans ,AC/BLDC/ECM motors as well as industrial fan blowers ，established in 1990 ,equipped with high advanced testing and production facilities ，automatic welding machines , CNC machining centers ,injection machines . with over than 28 years manufacturing experiences , LONGWELL is very skilled in designing, developing and manufacturing ,and exporting to over 30 countries including many Fortune Global 500 customers in HVACR application . and products passed CCC，CE ,ETL and UL .
