Types :	60mm Double Blower 220v 115V electric fan tangential fan blower for air curtain ,ventilation cooling system
Voltage Ranges :	230V
Frequency :	50/60 Hz
Diamter :	60mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Blade Material	aluminium alloy
mounting	FREE STANDING
speed	4000rpm, 1100rpm, 990rpm
voltage	230V
customized support	OEM, ODM, OBM
place of origin	Zhejiang, China
brand name	LONGWELL

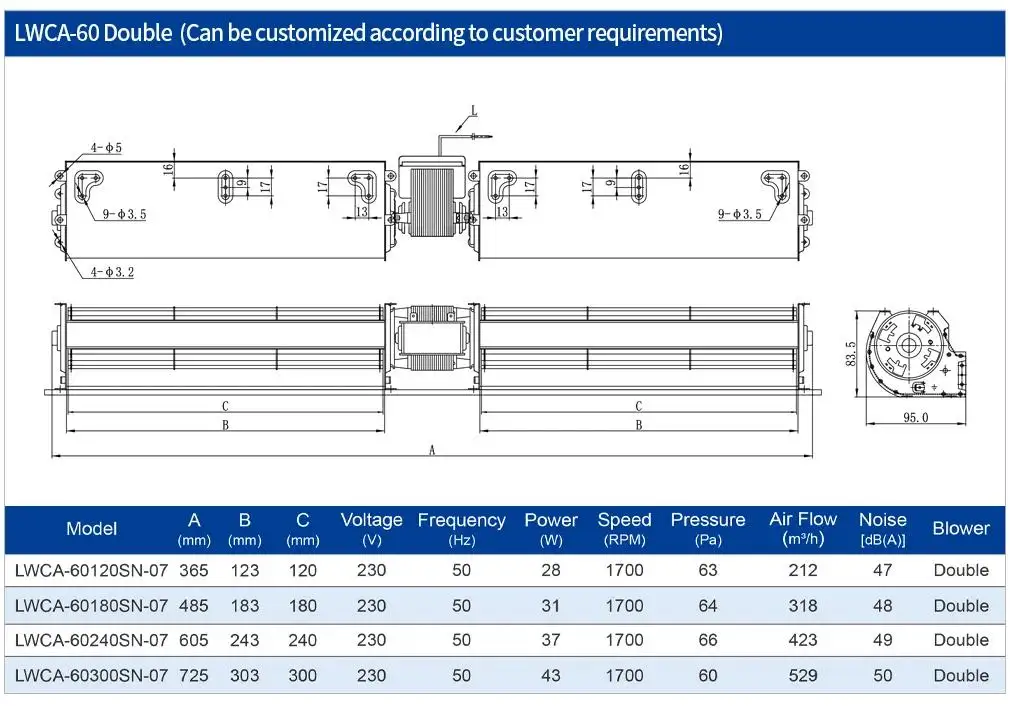

model number	LWAC-60mm Douuble
warranty	1 Year
After-sales Service Provided	Video technical support
Material	Plastic, Aluminum Alloy, Steel
Motor type	AC Shaded Pole Motor

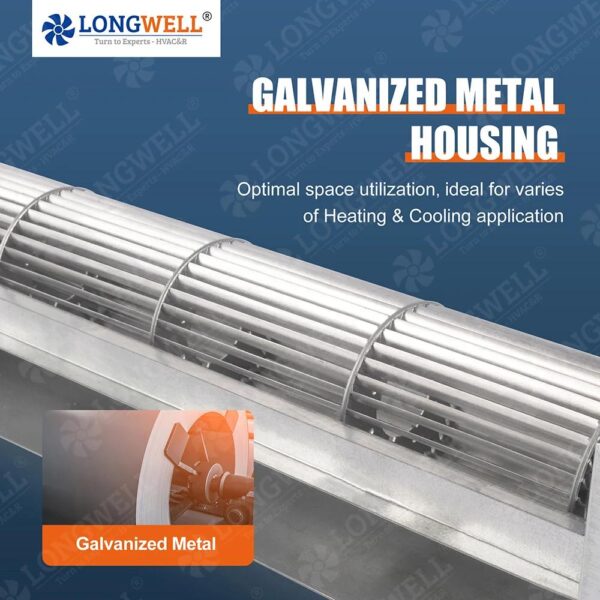

Housing Material	Galvanized Metal
Impeller/Blade material	Aluminum Alloy
Bearing Type	Ball bearing / Sleeve bearing
Operating temperature	– 25 ℃ ~ +60 ℃
Fan Speed	1/2/3 speeds available
Motor certification	CCC/CE
Application	Floor Heating / air curtain / air purifier / microwave oven

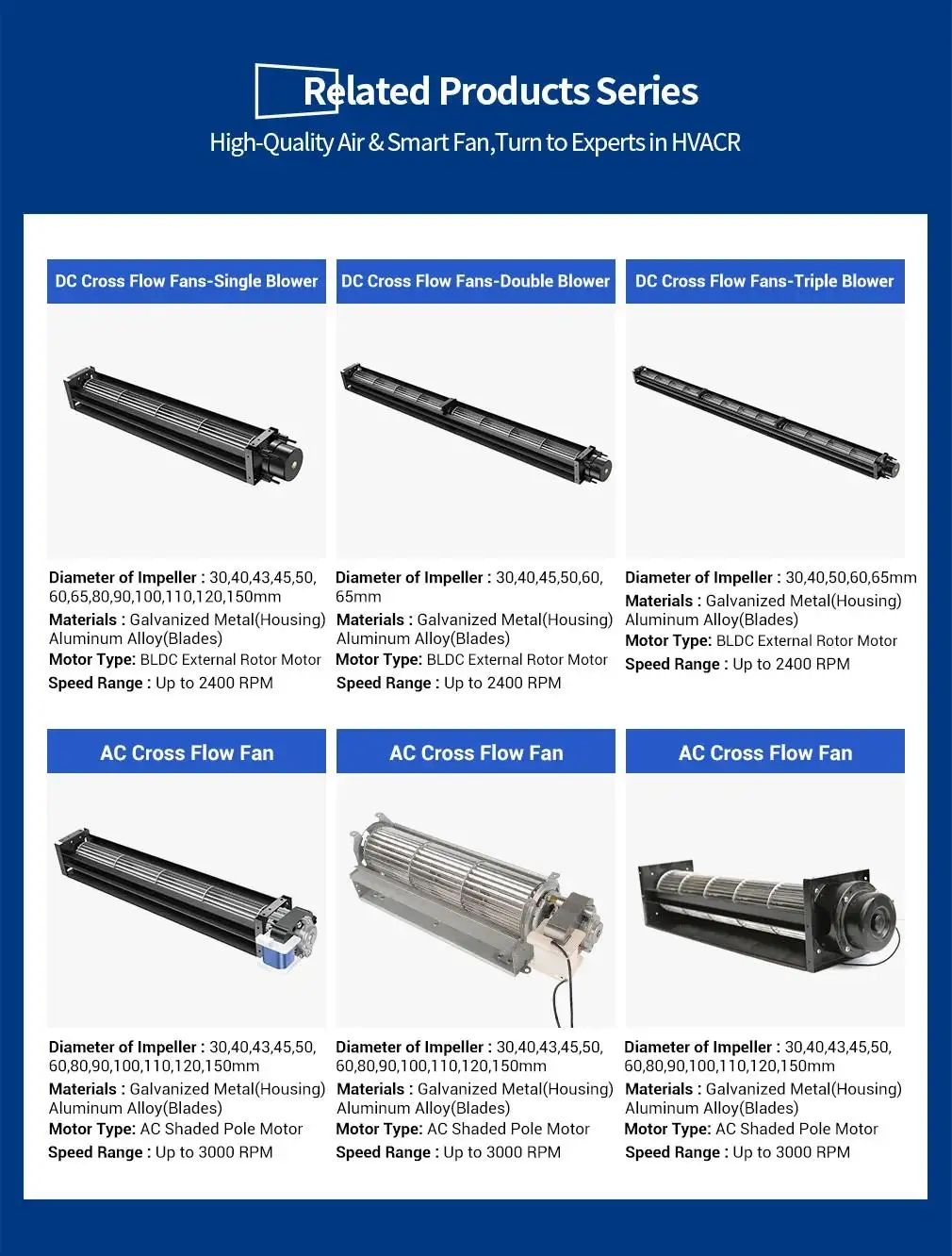

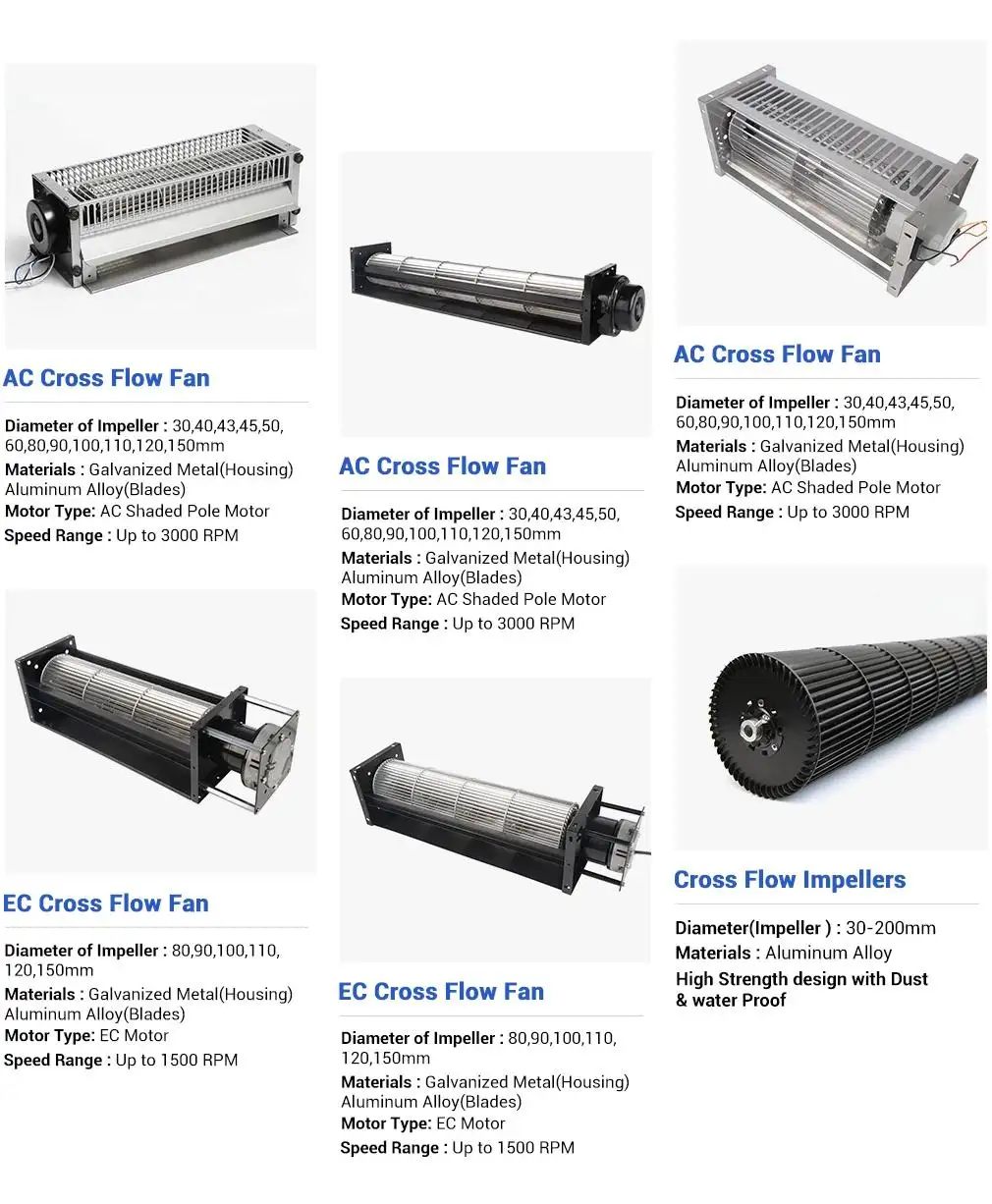

Related Products	25~200mm Dia available

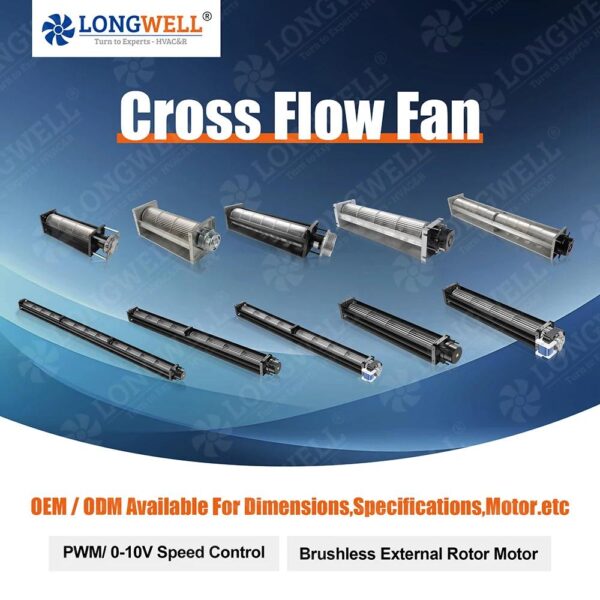

Type	CROSS FLOW FAN
Selling units	Single item
Single package size	50X50X50 cm
Single gross weight	3.000 kg

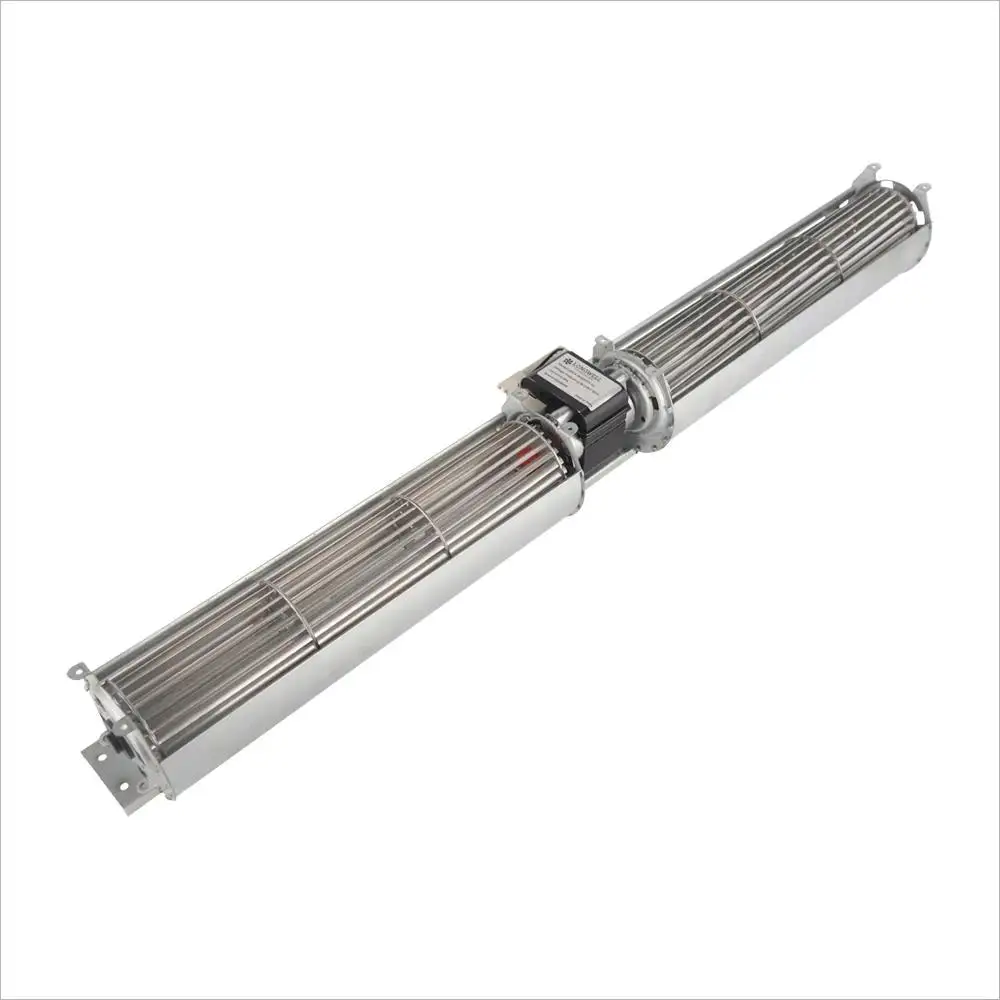

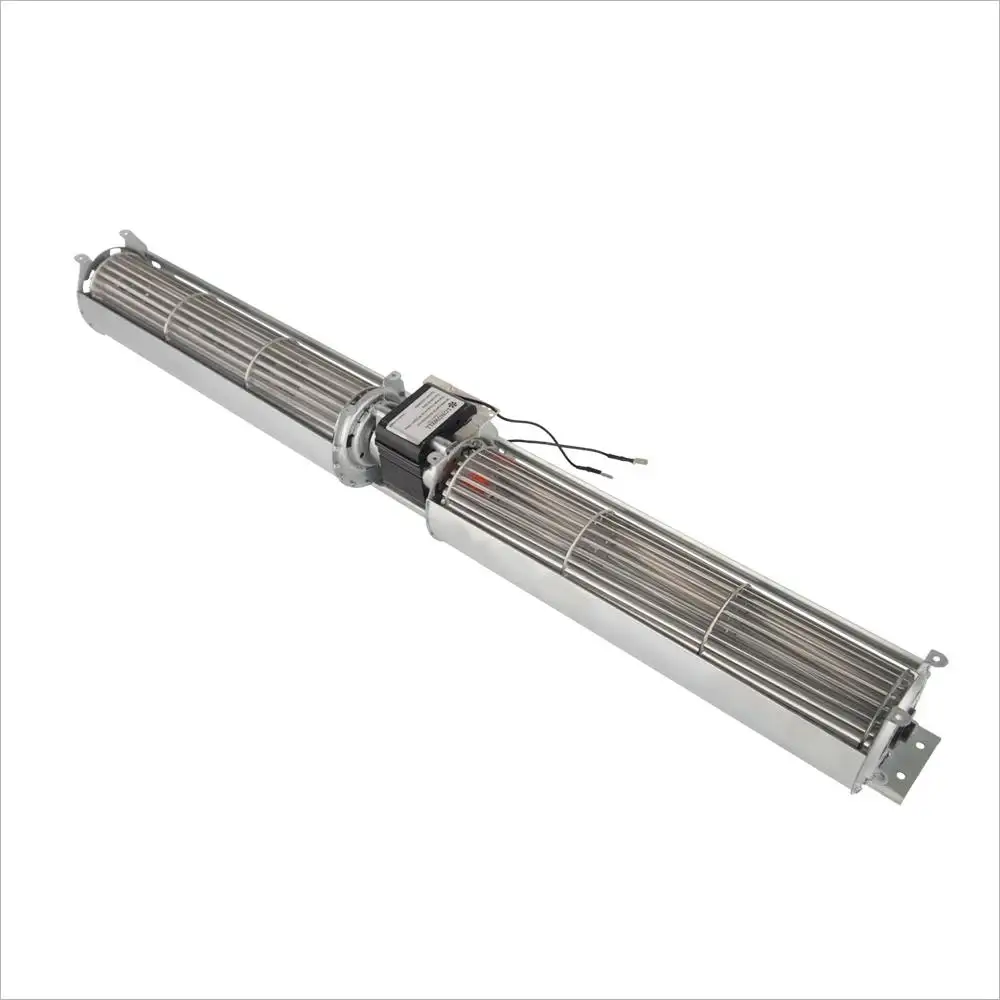

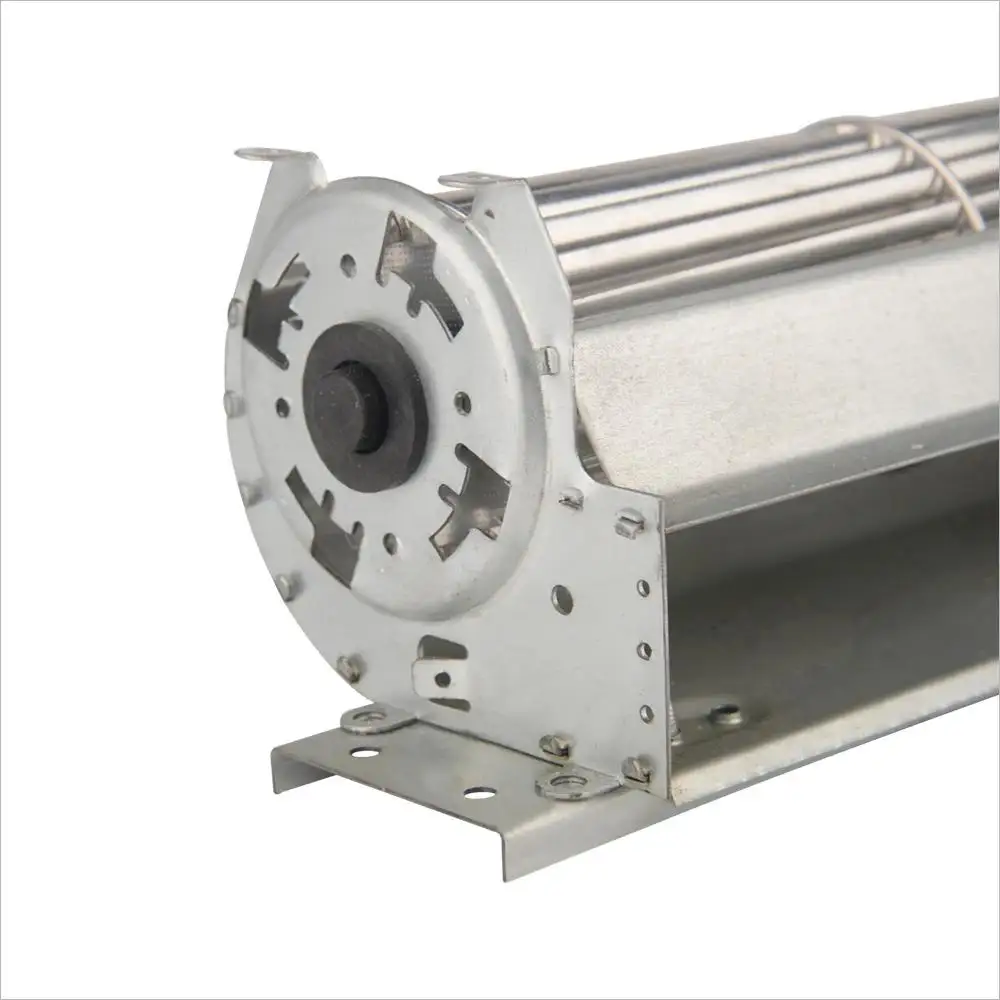

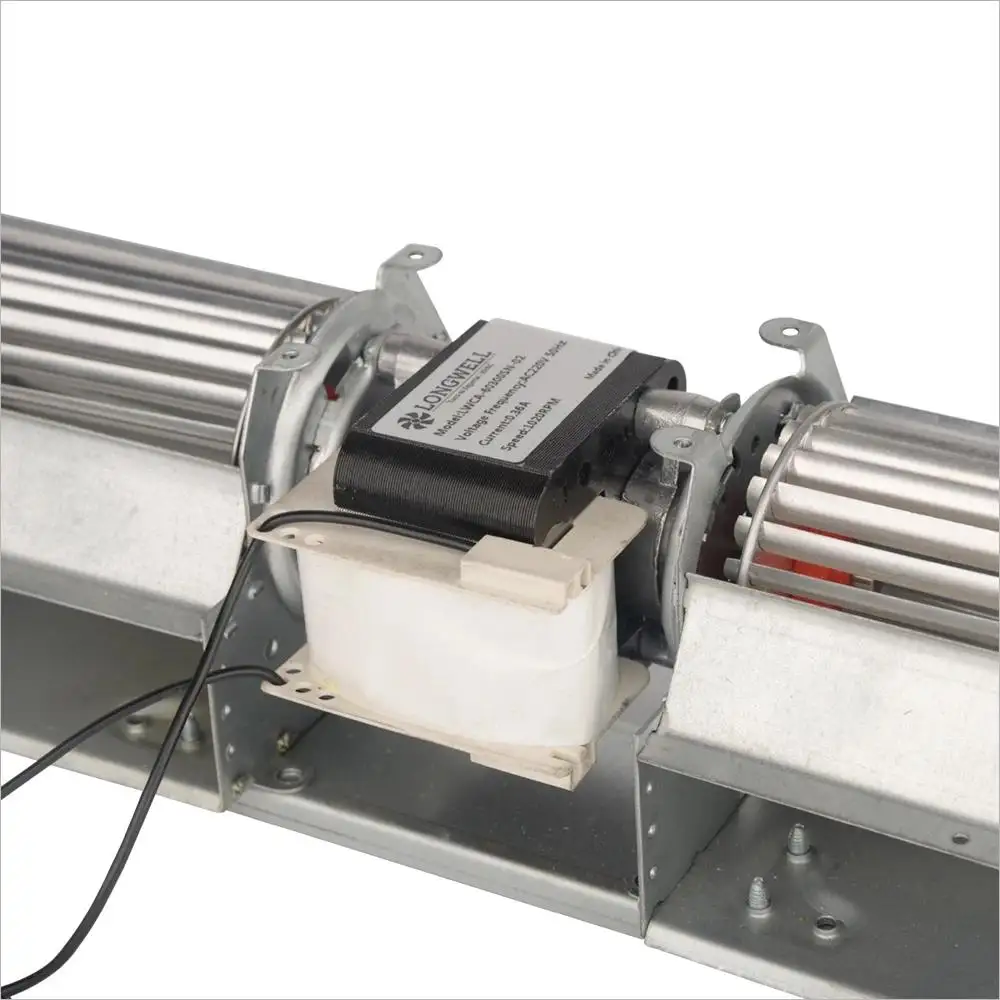

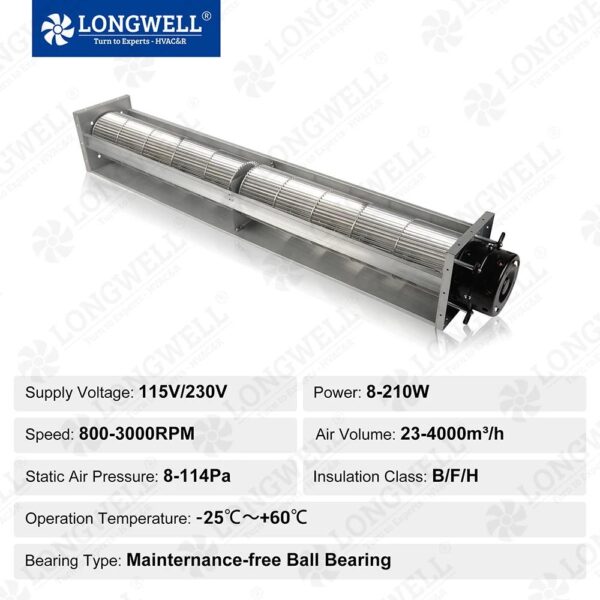

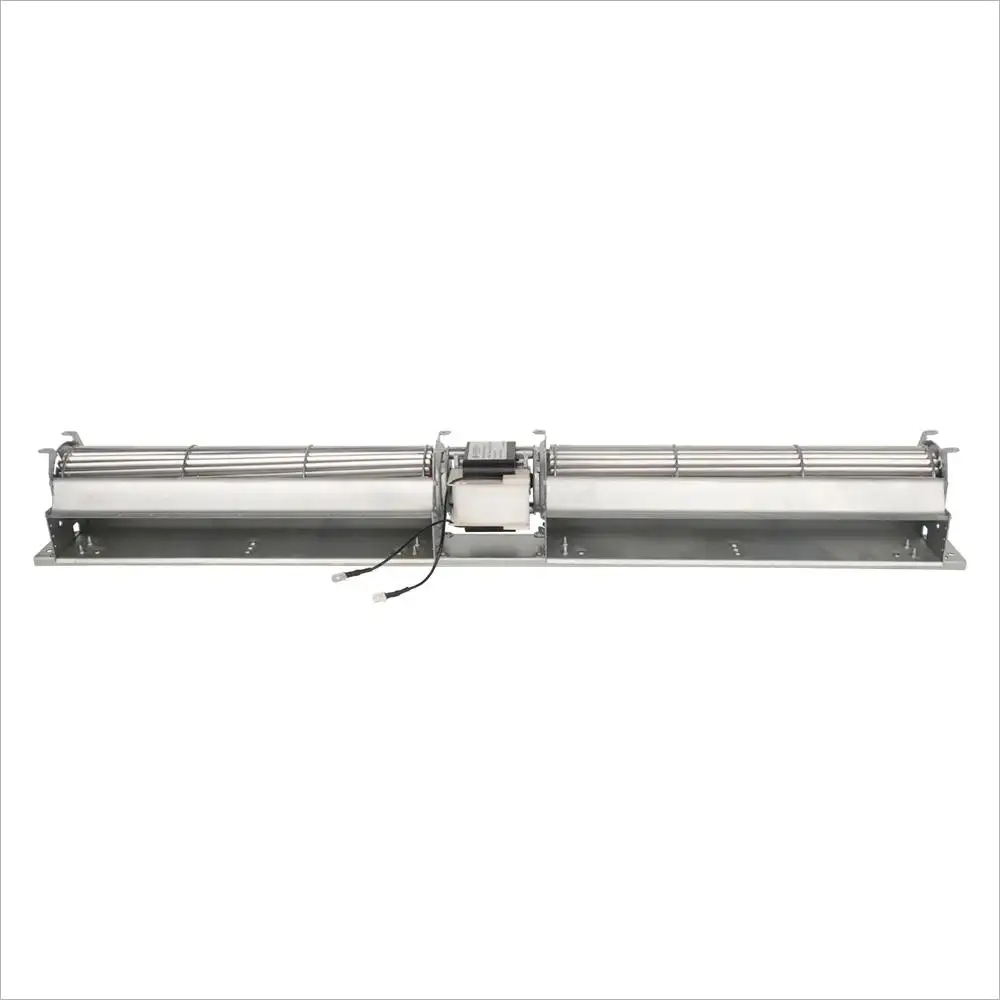

LONGWELL 60mm Double Cross Flow Blower Fan AC 230V Electric Tangential Fan for air Curtain,ventilation Cooling System
