Product descriptions from the supplier

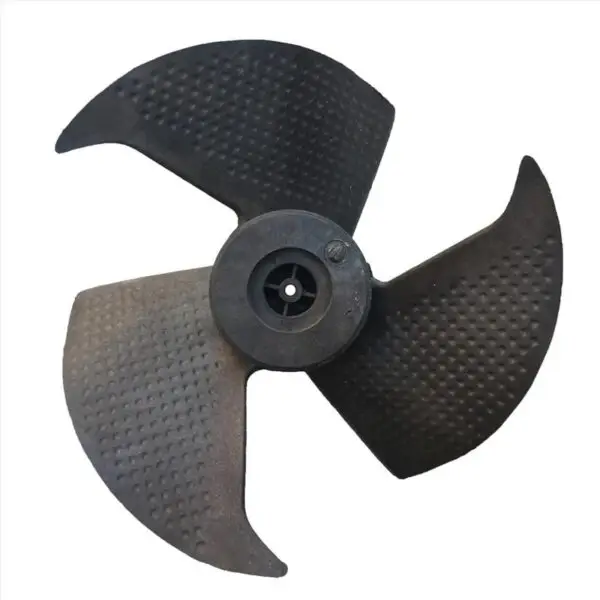

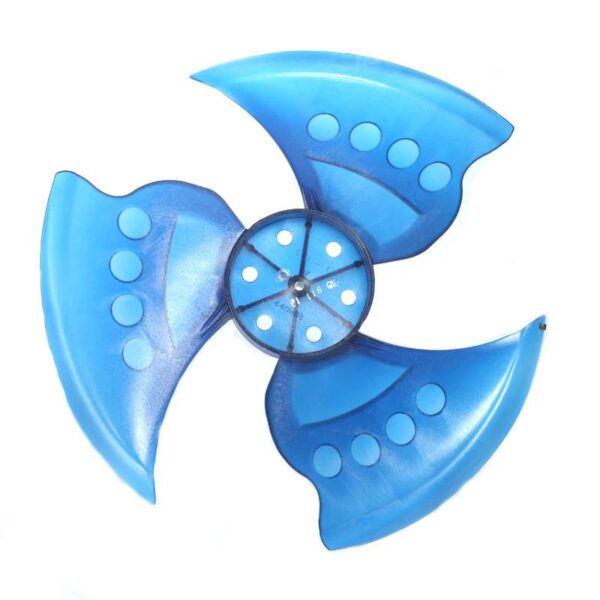

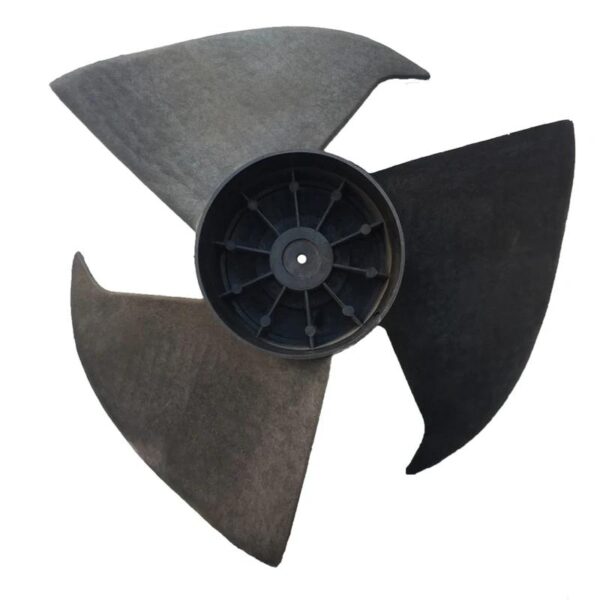

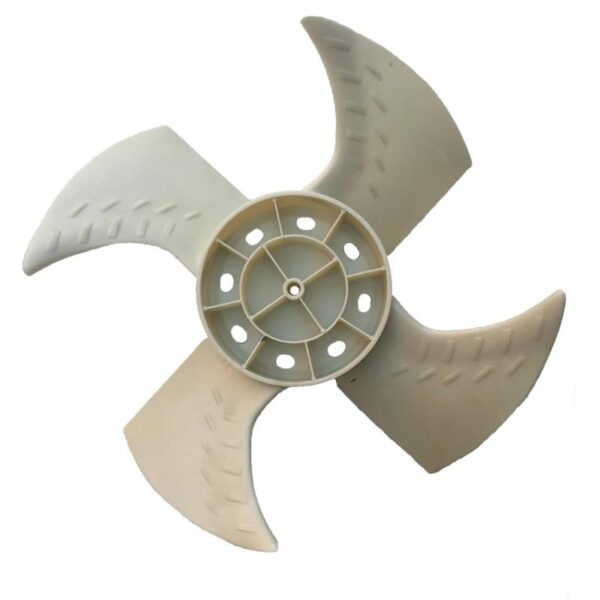

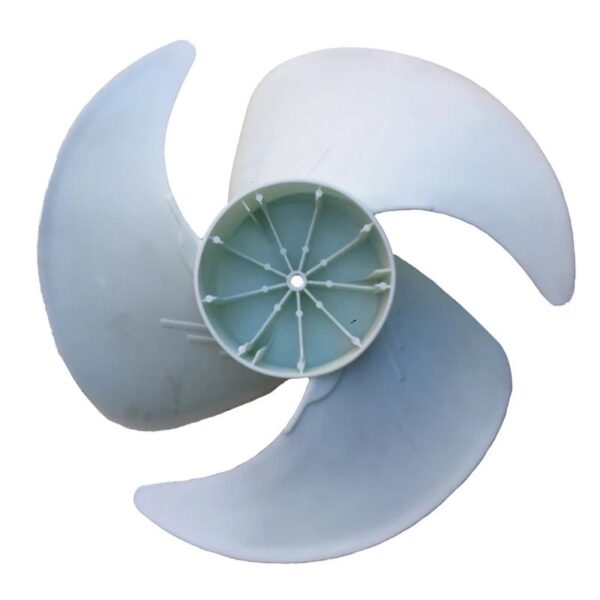

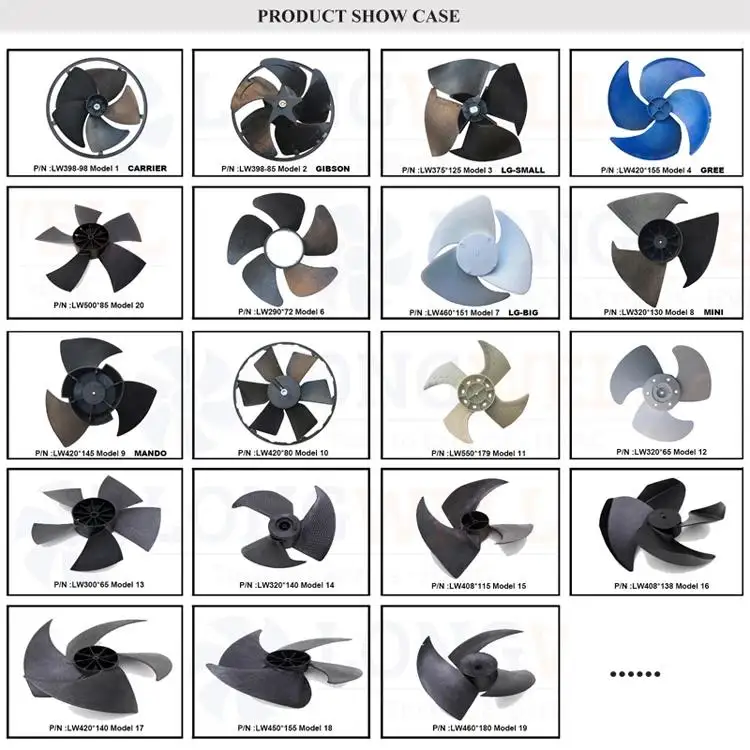

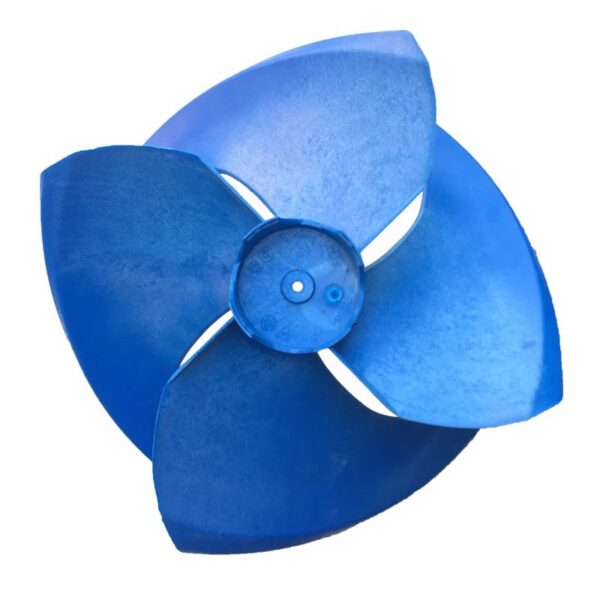

- Axial fow type :
| Part Number | Outer Diameter (mm)-A | Height (mm)-L1 | Shaft sleeve ID (mm) -B | Blades-Qty | Flat D size | Rotation (CW/CCW) | Material | Weigt -g | color (customized) |
| LW325x137 | 325 | 137 | 8-12mm | 3 | Customized | CCW &CW | Reforced AS ,ABS,ABS,PP | 430 | Customized |
| LW350x130 | 350 | 130 | 8-12mm | 4 | 465 | ||||
| LW385x116 | 385 | 116 | 8-12mm | 5 | 565 | ||||
| LW400x122 | 400 | 122 | 8-12mm | 4 | 505 | ||||
| LW405*129 | 405 | 129 | 8-12mm | 3 | 465 | ||||
| LW408*132 | 408 | 132 | 8-12mm | 3 | 420 | ||||
| LW415x125 | 415 | 125 | 8-12mm | 4 | 800 | ||||
| LW420x149 | 420 | 149 | 8-12mm | 4 | 715 | ||||
| LW440x150 | 440 | 150 | 8-12mm | 4 | 815 | ||||
| LW453*147 | 453 | 147 | 8-12mm | 4 | 1010 | ||||
| LW460*170 | 460 | 170 | 8-12mm | 3 | 935 | ||||
| LW482x150 | 482 | 482 | 8-12mm | 3 | 990 | ||||
| LW490x120 | 490 | 490 | 8-12mm | 6 | 900 | ||||
| LW556x170 | 556 | 556 | 8-12mm | 4 | 1255 |

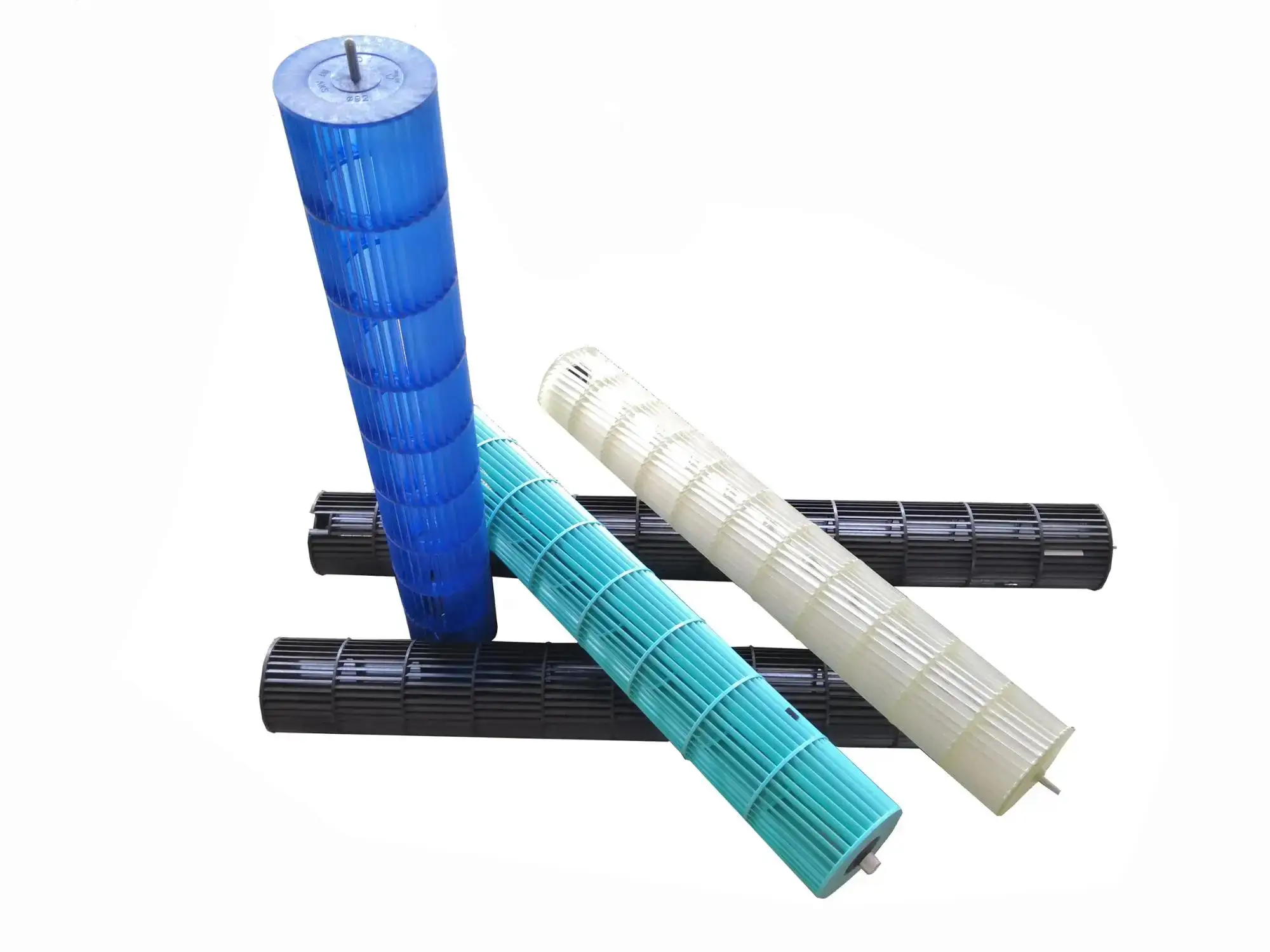

- Cross flow type:
| Diameter -A | Lengh -L1 | Shaft | Shaft sleeve | Rotation | Set screw | ||||
| mm | mm | shaft diameter -C (mm) | shaft length -L2 (mm) | Shaft sleeve ID -B (mm) | shaft sleeve length -D | color | Blades Qty | see from shaft end | |
| Ø50 | ≤800 | Ø4,6,8,10,12 | ≤50 | Ø4,6,8,10,12 | inside. /outsize ≤35mm | Customization by customer generally black, white ,blue ,green | 25 | CCW | M4,M5 |
| Ø60 | 31 | CCW | |||||||
| Ø71 | 35 | CCW | |||||||
| Ø76 | 35 | CCW | |||||||
| Ø81 | 35 | CCW | |||||||
| Ø87 | 35 | CCW | |||||||
| Ø90 | 28 | CCW | |||||||
| Ø91 | 35 | CCW | |||||||
| Ø93 | 35 | CCW | |||||||
| Ø95 | 35 | CCW | |||||||
| Ø97 | ≤1200 | 35 | CCW | ||||||
| Ø101.5 | 35 | CCW | |||||||
| Ø105 | 35 | CCW | |||||||
| Ø108 | 28 | CCW | |||||||
| Ø109 | 35 | CCW | |||||||
| Ø112 | 28 | CCW | |||||||
| Ø115 | 35 | CCW | |||||||
| Ø120 | 26 | CCW | |||||||
| Ø121 | 35 | CCW | |||||||
| Ø125 | 35 | CCW | |||||||
| Ø135 | 35 | CCW | |||||||
| Ø150 | 24 | CCW | |||||||
| Ø160 | 32 | CCW | |||||||
| Ø180 | 35 | CCW | |||||||

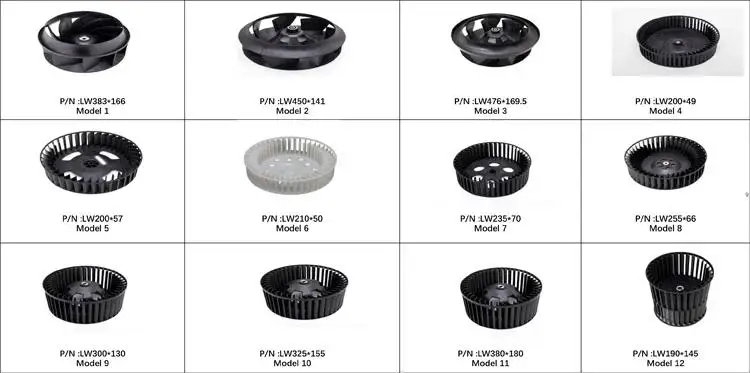

- Centrifugal Type :
| Part Number | Outer Diameter (mm)-A | Height (mm)-L1 | shaft hole ID(mm) | Flat D size | Rotation (CW/CCW) | Material | color |
| LW283*166 | 283 | 166 | 10 | customized | CW & CCW | Reforced AS ,ABS,ABS,PP | customized |
| LW450*141 | 450 | 141 | 12 | ||||
| LW476*169.5 | 476 | 169.5 | 12 | ||||
| LW200*49 | 200 | 49 | 6 | ||||
| LW200*57 | 200 | 57 | 8 | ||||
| LW210*50 | 210 | 50 | 8 | ||||
| LW235*70 | 235 | 70 | 8 | ||||
| LW255*66 | 255 | 66 | 8 | ||||
| LW300*130 | 300 | 130 | 12 | ||||
| LW325*155 | 325 | 155 | 12 | ||||
| LW380*180 | 380 | 180 | 12 | ||||
| LW190*145 | 190 | 145 |
12 |
Please contact us directly if you have any questions ,click here to inquiry us

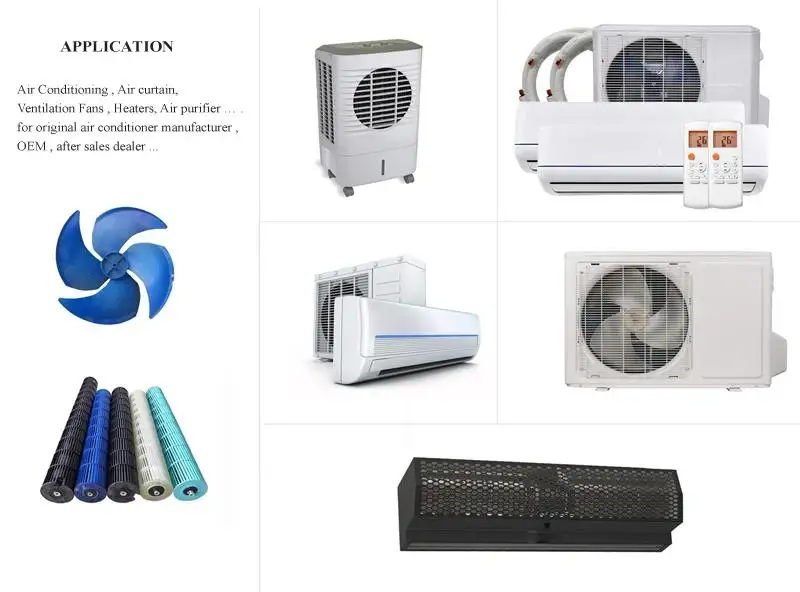

Applications

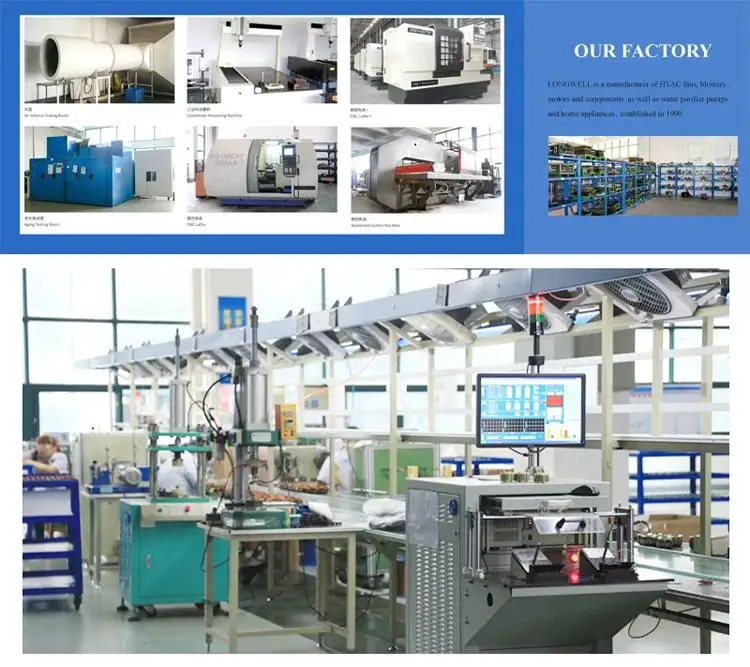

Company Information
