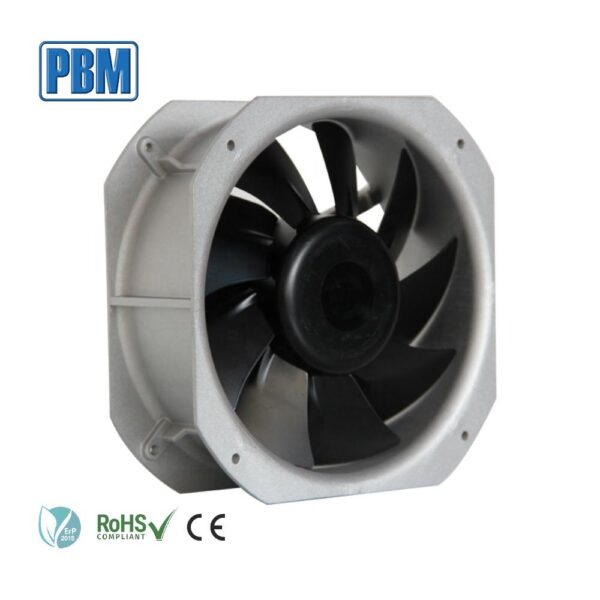

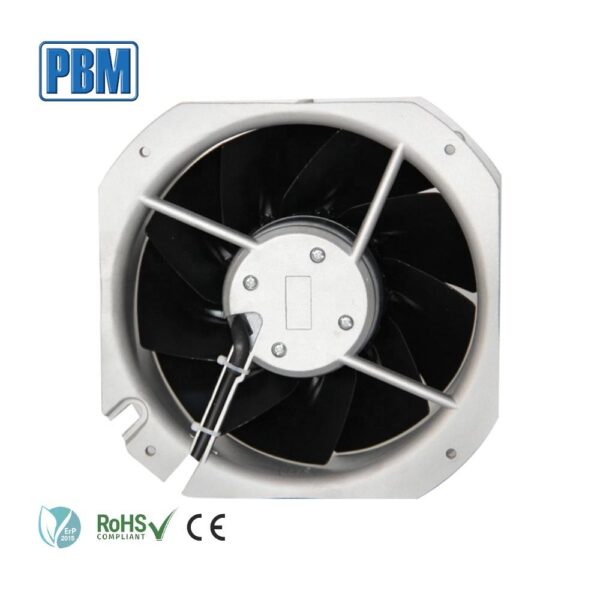

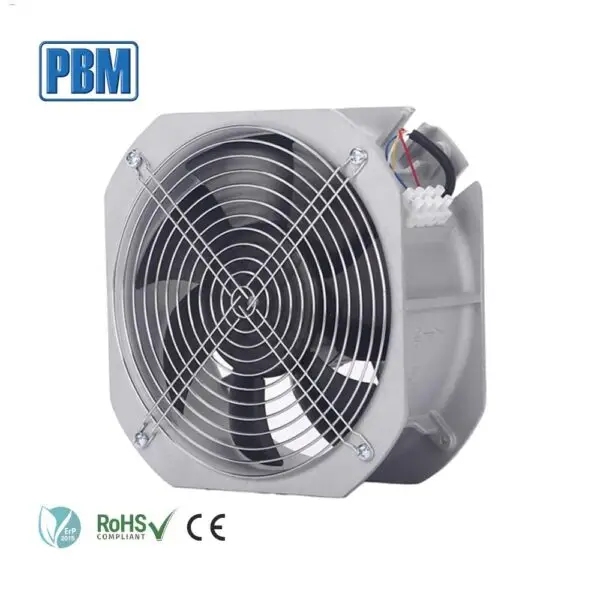

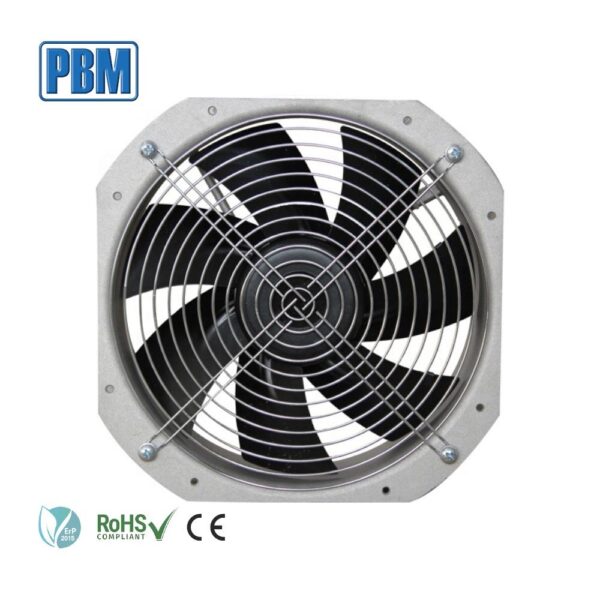

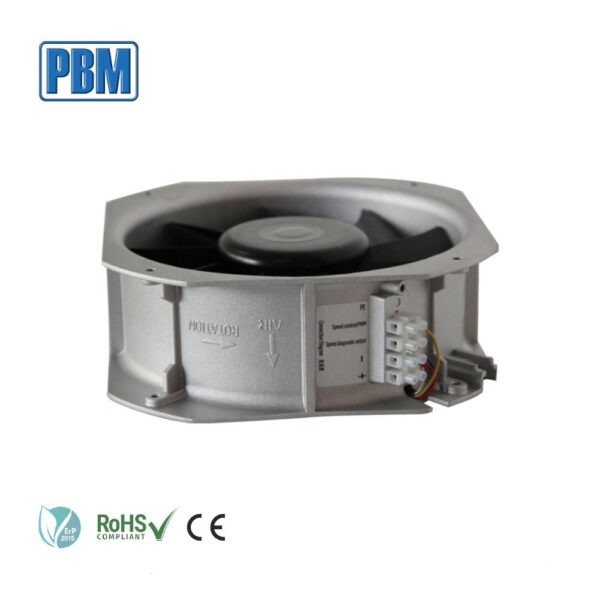

Product name: 12V DC Axial Car Radiator Fan with Brushless Motor
Fan type:DC Axial Fan
PBM Motor and Fan is a China mainland manufacturer and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. Our main products are EC fans, including EC axial fans, EC centrifugal fans and EC blowers. We do both AC and DC current type. And EC Motor is the core technology of our products.
Eletronically Commutated Motors(EC Motors)also known as Brushless DC Motors(BLDC) are synchronous electric motors powered by direct-current(DC) electricity and having electronic commutation systems,rather than mechanical commutators and brushes.The current-to-torque and voltage-to-speed relationships of BLDC motors are linear.
PBM fans are widely used in many fields. For example, axial fan for telecom, backward curved centrifugal fan for air exchanger,(inline duct fan)hydroponic products and FFU, forward curved centrifugal fan for air purifier and air conditioning,blower for kitchen.
1.General Characters
|
Rated Voltage |
24VDC |
|
Operating Voltage |
16~28 VDC |
|
Rated Speed |
2750 RPM |
|
Input Current |
4.8 A |
|
Input Power |
115.2 W |
|
Air Flow |
1118.15 CFM / 1900 m3/H |
|
Static Pressure |
0.88 inH2O / 220 Pa |
|
Acoustical Noise |
69 dB(A) |
|
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
Insulation Class |
Class B |
|
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
Speed Control |
Control input 0~10VDC / PWM |
|
Protection Type |
IP44 |
|
Signal Output |
FG (Frequency Generator) |
2.Mechanical Characters
|
Dimension |
Ø250mm X 80mm (see dimension drawing) |
|
Material of Impeller |
Cold rolled steel sheet |
|
Number of Blades |
7 |
|
Bearing System |
NMB ball bearing |
|
Lead Wire |
AC(AWG20#),DC(AWG22 #) |
3.Environmental Characters
|
Operating Temperature |
-25℃ to 60℃ |
|
Storage Temperature |
-40℃ to 75℃ |
|
Operating Humidity |
5% to 90% RH |
|
Storage Humidity |
5% to 95% RH |

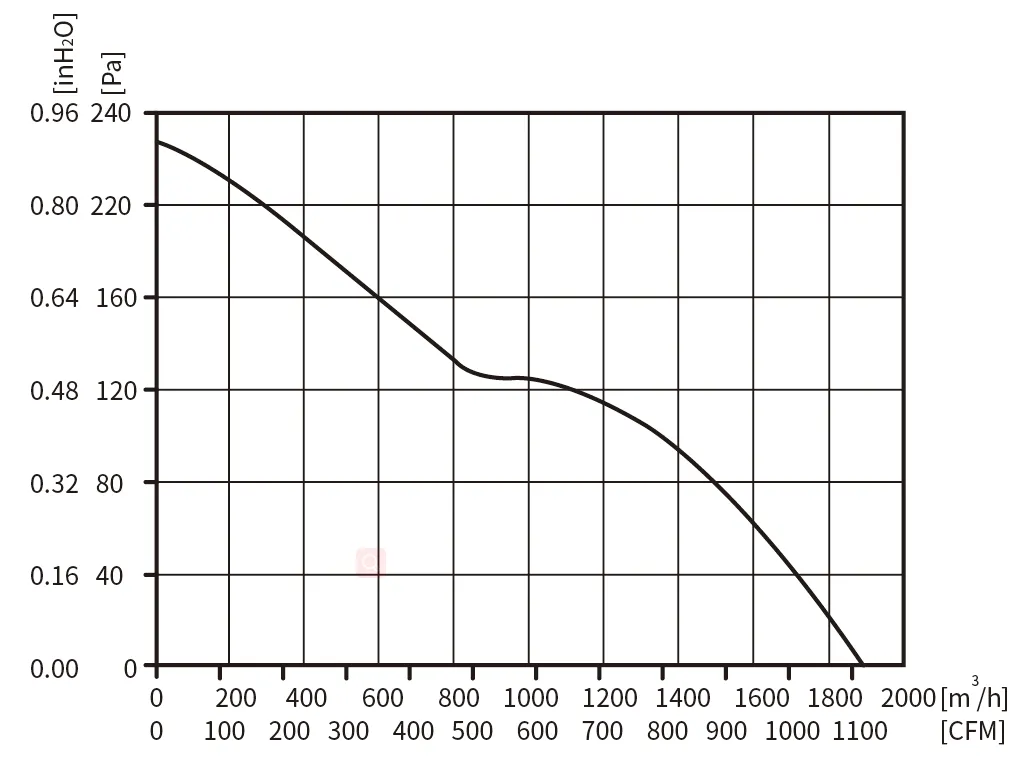

4.Performance Curve
Testing Condition:
Input Voltage—-Operating voltage (24VDC)
Temperature—–Room temperature
Humidity———65%RH

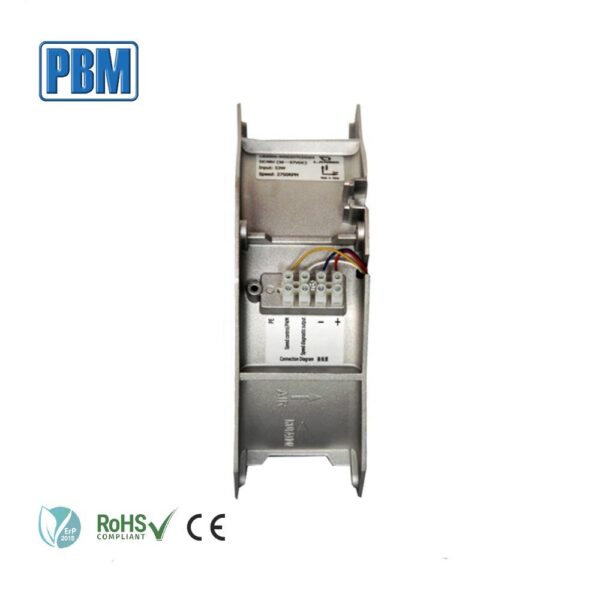

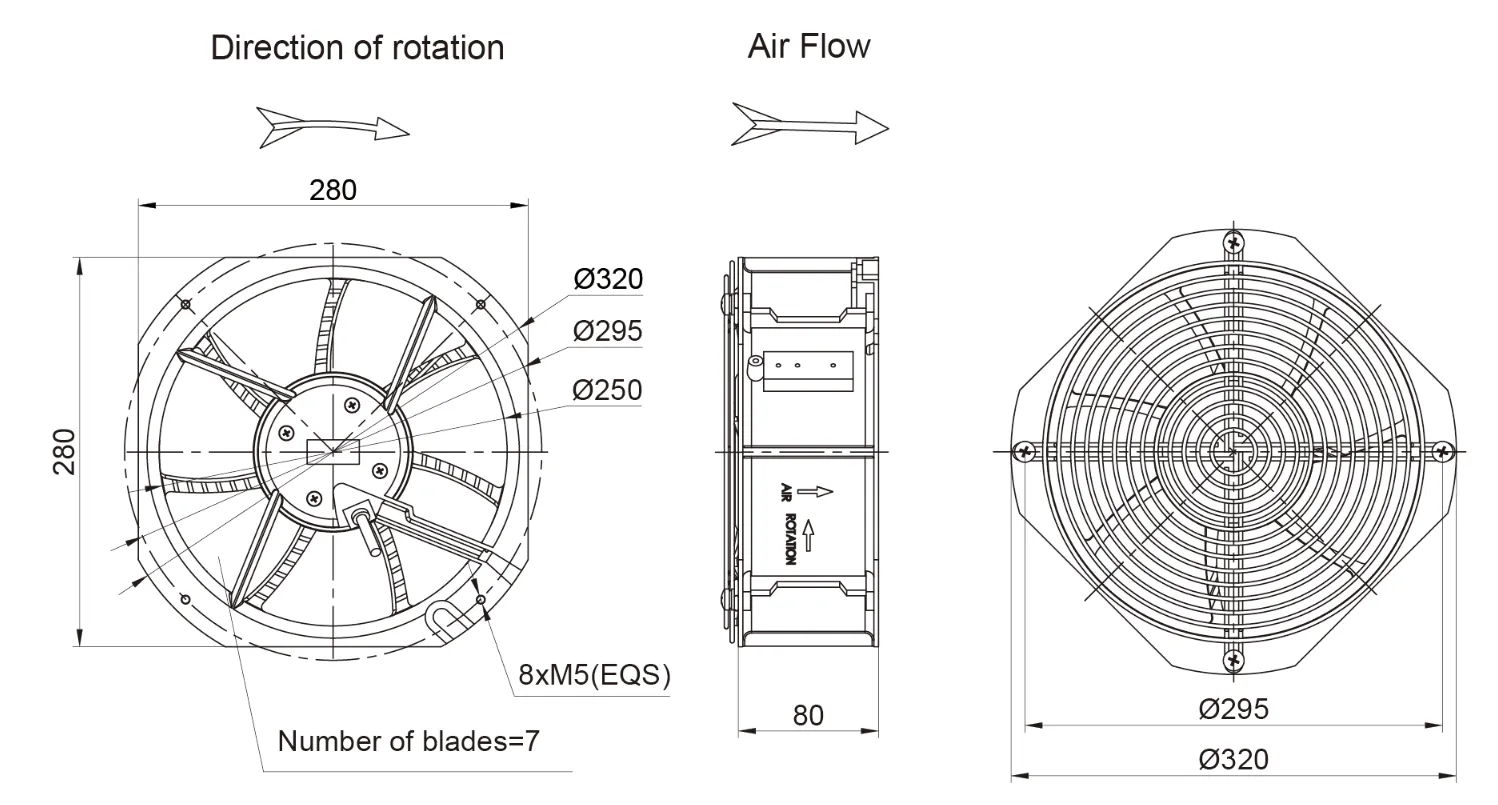

5.Outline Drawing
1.Connection line:DC(4×AWG22#)
2.DC: Red=Voltage Intput 24VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
