Product Application

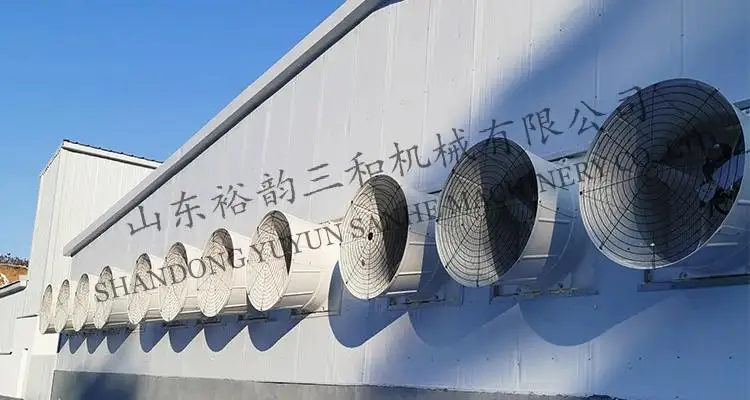

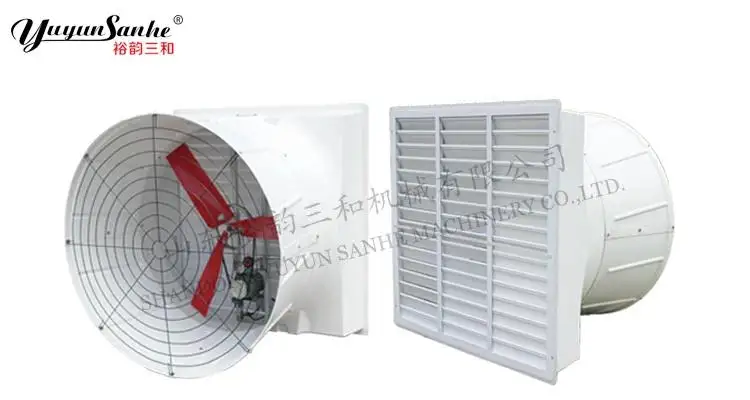

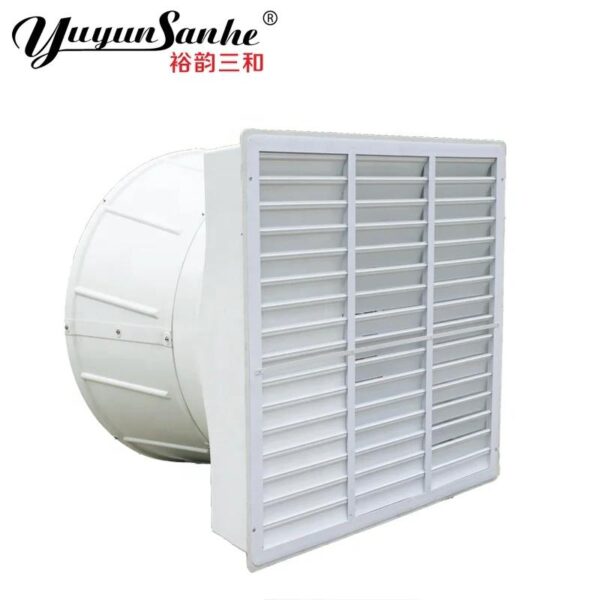

DJF （P） Series FRP Cone Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

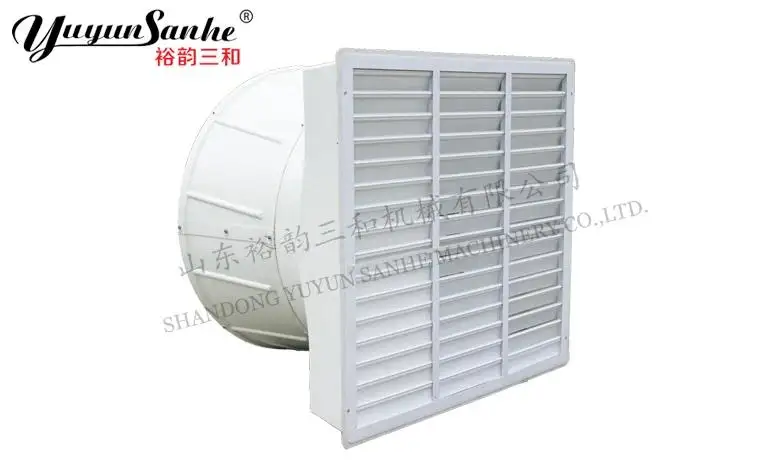

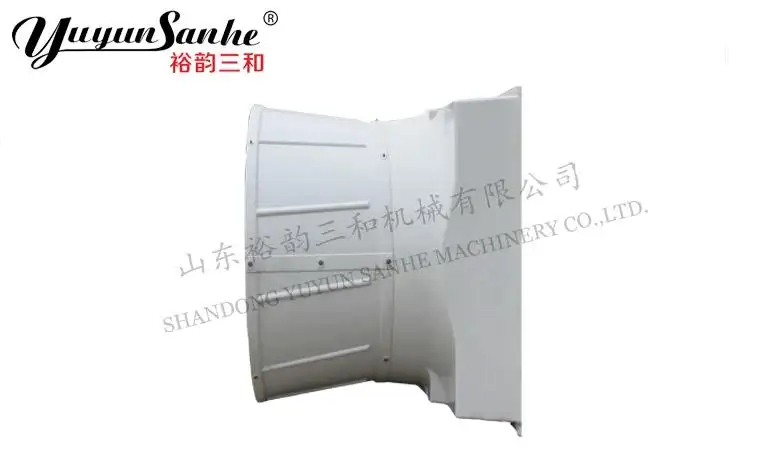

Frame
1. The frame is designed according to the aerodynamic principle.
2. It is made of high-strength anti-corrosion FRP material and has a thickened design, beautiful appearance, strong waterproof, corrosion resistance and strong aging resistance.
3.Equipped with FRP horn-cone, the exhaust performance is significantly improved.

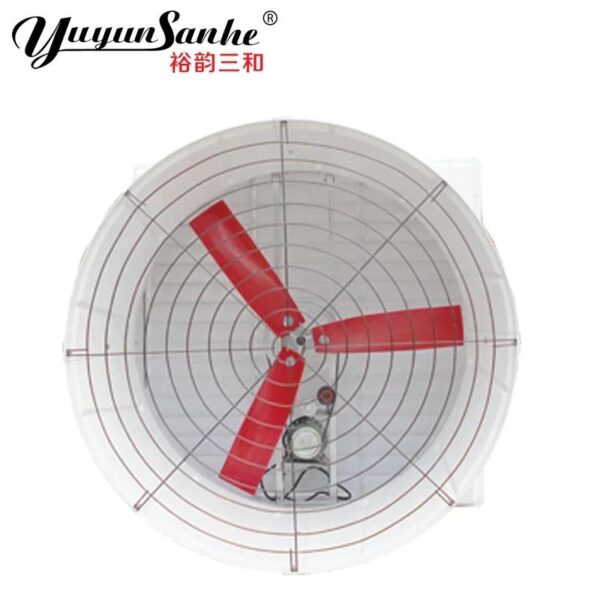

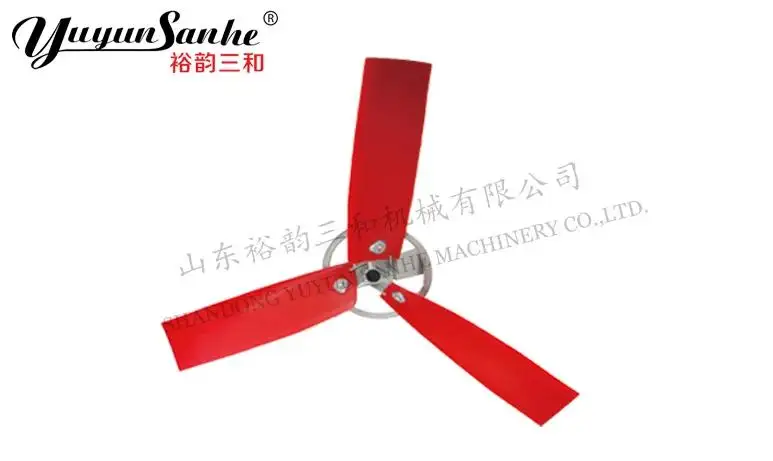

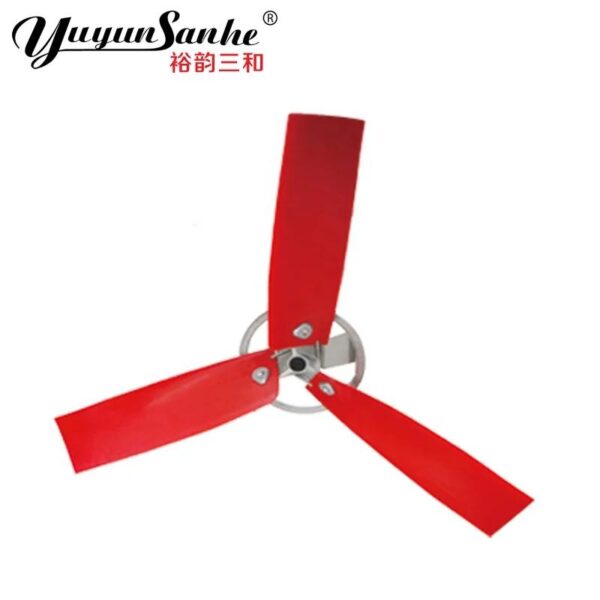

1. The fan blades are made of high quality plastic, beautiful appearance, low noise.
2. Reasonable fan blade angle design, large air volume and high efficiency.

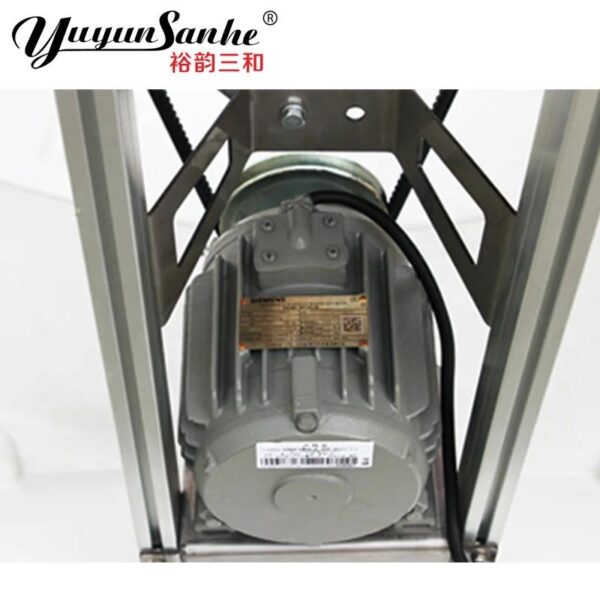

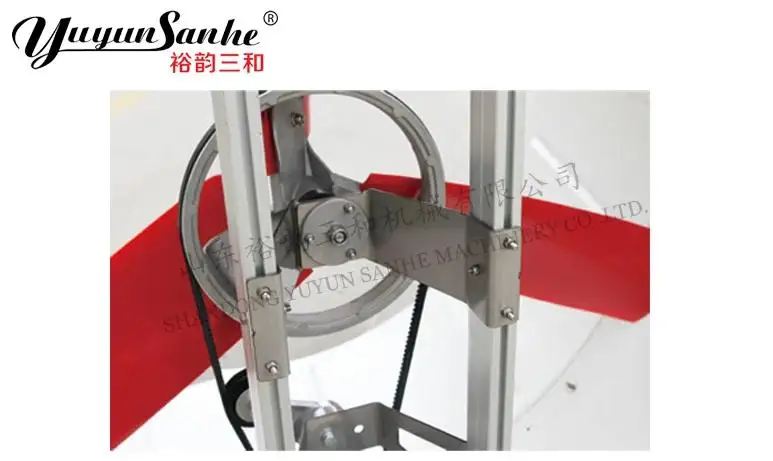

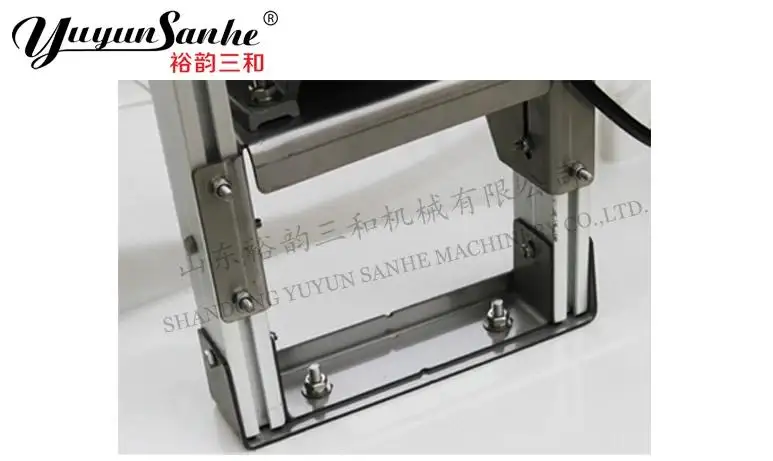

H-type aluminum alloy bracket, light weight, stable installation.
|

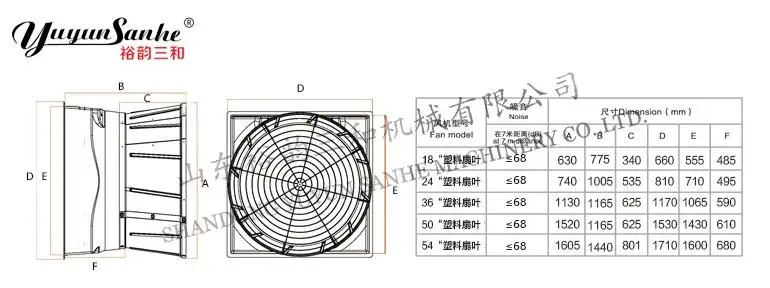

Technical Data:
|
||||||||||||||
|
Model
|
Drive
|
Blades Diameter
|
Blades Rotational Speed(rpm)
|
Motor Rotational Speed(rpm)
|
Air Flow (m³/h)
|
Input Power (W)
|
Noise (db)
|
|||||||
|
DJF(p)-460
|
Direct
|
460mm (18″)
|
1400
|
1400
|
8400
|
550
|
<70
|
|||||||
|
DJF(p)-610
|
Direct
|
610mm(24″)
|
948
|
948
|
16800
|
550
|
<70
|
|||||||
|
DJF(p)-915
|
Direct/Belt
|
910mm(36″)
|
950
|
950
|
25000
|
750
|
60
|
|||||||
|
DJF(p)-1270
|
Belt
|
1270mm(50″)
|
340
|
1400
|
45800
|
1100
|
<64
|
|||||||
|
DJF(p)-1372
|
Belt
|
1372mm(54″)
|
325
|
1400
|
56500
|
1500
|
<64
|
|||||||
Yuyun Sanhe Products have passed “CE Certificate “, “CCC Certificate” and “Quality Management System Certificate”
Yuyun Sanhe Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.
Global service, Annual sales over $ 30 million
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service

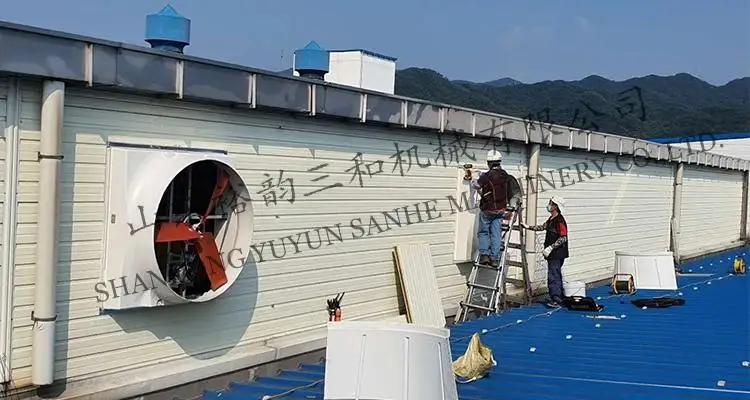

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
